Series E26.3

Here you can configure your Energy Chain System® individually. All entries will be copied to the Bill of Materials shown at the bottom of this page.

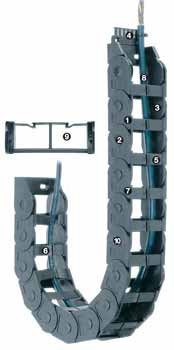

Series E26.3 - Chain to be filled along the outer radius

1. Torsional movements possible
2. Large pins - long service life
3. Cable-friendly interior
4. Mounting bracket with integrated
strain relief option
5. Version E, filled along outer radius
6. Version Z, filled along inner radius
7. Dirt-repellent outer contours
8. Very easy to fill
9. Available with {N10}, 2 or 3-chamber system (permanently injection-moulded multiple-chamber system for cable separation)
Series E26 )
Series E26.2
10. "Pushbutton design" holds links together

Available inner widths: 3x47 mm
Available bend radii R: 63 to 250 mm
Pitch: 56 mm /link = 18 links/m

Series E26.3 is suitable for the following types of applications:

Vertical:hanging applications, standing applications
Horizontal: unsupported applications ≤ 2 m
rotary: rotating applications may be possible, please contact us

When to use Series E26.3

Favourable price
When easy filling without opening and closing of lids is required
Quiet running is required.

When not to use Series E26.3

For applications with particularly high loads and large unsupported lengths
Series 3400/3450/3480/3500 E2/000
If secure closing of the opening crossbars is required
Series 3400/3450/3480/3500 E2/000

Installation dimensions


Part No. :
Inner width Bi [inch]:
Bi1 [inch]:
Bi2 [inch]:
Bi3 [inch]:
Bending radius R [inch]:
Travel distance S [ft]:
Chain length^** [ft]:
Number of chain links :
External width Ba [inch]:
H^* [inch]:
D [inch]:
K [inch]:
Hi [inch]:
Ha [inch]:
Weight per link [oz.]:
Weight [lbs/ft]:
* The required clearance height is HF = H + 35 mm (with 2 kg/m fill weight), this should be taken into account for all application types. Please contact us if you have particularly narrow space conditions.
** The calculated length corresponds to the chain length without mounting brackets.

Crossbars overlapping on the opening mechanism
A=Moving end, B=Fixed end
Pitch: 56 mm
Links / m: 15
Travel: S
Chain length = S/2 + K

Unsupported length

Unsupported length versus fill weight
X axis: Unsupported length in m FLB/FLG
Y axis: Fill weight in kg/m
Lower scale: Travel S in m
FLB = Unsupported with permissible sag
FLG = Unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

1 options and 8 bend radii

2 mounting bracket variants

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Fixed interior separation

Product range

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator

Mounting brackets

Polymer - pivoting

Polymer - locking

unassembled	assembled

Recommended for unsupported and gliding applications

For tight installation spaces

Strain relief with clip-mountable tiewrap plates

Variable pivot angle for flexible assembly

Various mounting versions (pivoting) of the e-chain® on the fixed end and/or moving end through easy and versatile assembly of the mounting bracket


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

unassembled	assembled

Recommended for hanging and standing applications

For extreme accelerations and high speeds

When vertical space is restricted to the dimension H_F

Different e-chain® mounting options, through easy assembly of the locking mounting brackets to both the fixed and moving end


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [ft]	32,81 (10 m)
standing (max.) [ft]	4,92 (1,5 m)
max. side-mounted, unsupported [ft]	1,64 (0,5 m)
max. vertical, long travels [ft]	65,62 (20 m)
circular	with reworking

Material of chain links	igumid NB
Min. permissible temperature [°F]	-40 (-40 °C)
Max. permissible temperature [°F]	176 (80 °C)
Gliding speed (max.) [fpm]	590,55 (3 m/s)
Max. gliding speed [ft/s²]	32,81 (10 m/s²)
Speed FLG max. [fpm]	3937,01 (20 m/s)
Speed FLG max. [ft/s²]	656,17 (200 m/s²)
Speed FLB max. [fpm]	590,55 (3 m/s)
Speed FLB max. [ft/s²]	19,69 (6 m/s²)
Flammability class of chain link	VDE 0304 IIC UL94 V2
