Cable guide on the robot

Every movement, no wear

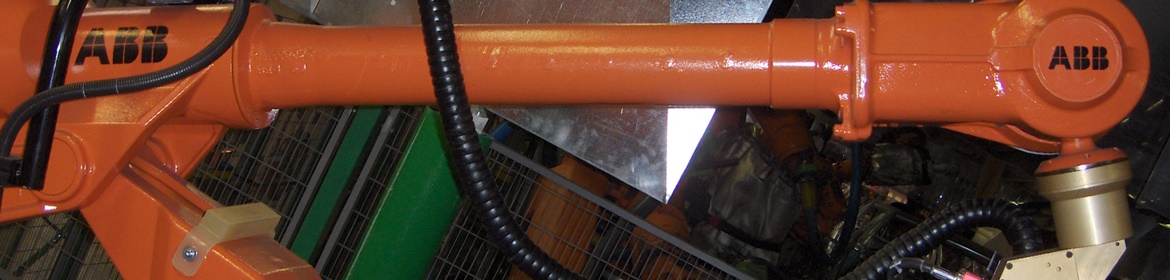

With this industrial robot, a fixed pipe between the 3rd and 6th axis was replaced with a triflex cable guide that can be moved in multiple dimensions.  The pipe previously used wore out due to the permanent movement of the components. The advantage of triflex R cable guides: they can be shortened and lengthened as needed; hence, all movements of the robot can be supported. Furthermore, a drylin W linear guide with polymer sliding elements by igus is used as a retraction system.


ABB France, Patrick Maguin,
St. Ouen l`aumone, France

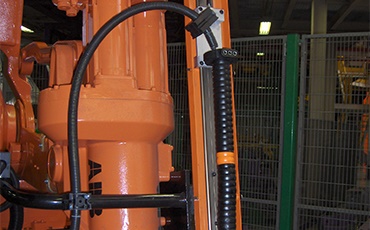

Cable guide on the robot

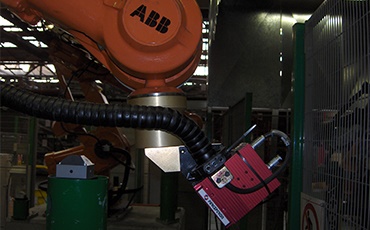

Cable guide on the robot

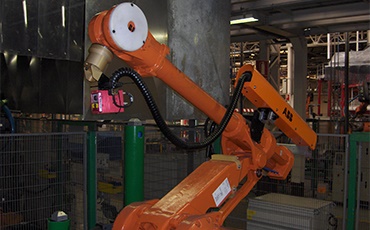

Cable guide on the robot

Here, you can find the products used:

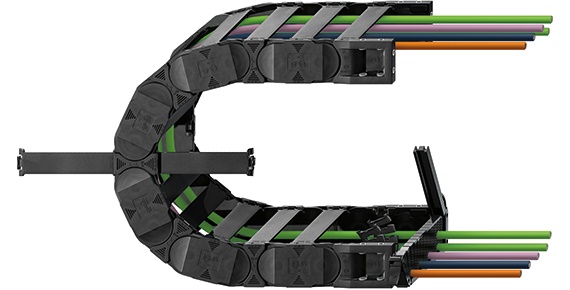

Cable guide sample order

Order a free sample of an igus cable guide!

You are thinking about installing one of our cable guides in one of your applications, but are not sure exactly what kind of cable guide you need?

To find a tailored cable guide for you, we need a detailed description of your problem or the application in question. After we have received and processed your request, we will send you a suitable sample of our cable guides.
Get your free cable guide sample now!
