Winding machine

To wind-up a thread, it is guided back and forth alongside the spool. A camshaft is used, which ensures that the thread is sent directly, or over a thread guide, through a groove. An alternative was searched for individual components because spare parts are rarely available and also costly. The camshaft is now produced via 3D printer and made of iglidur® I3. It is has better sliding features and costs were reduced by about 50%.

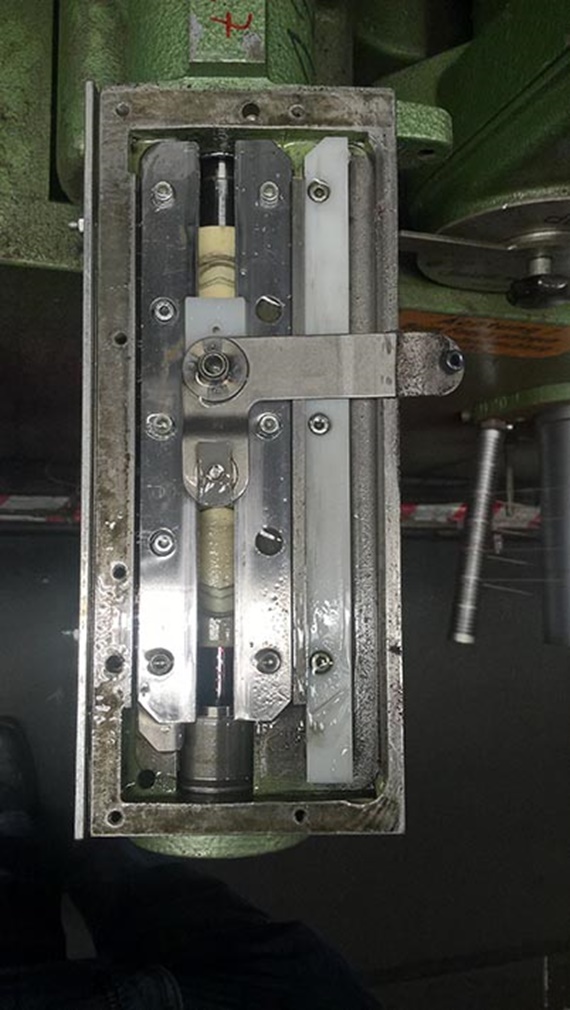

Winding machine_01

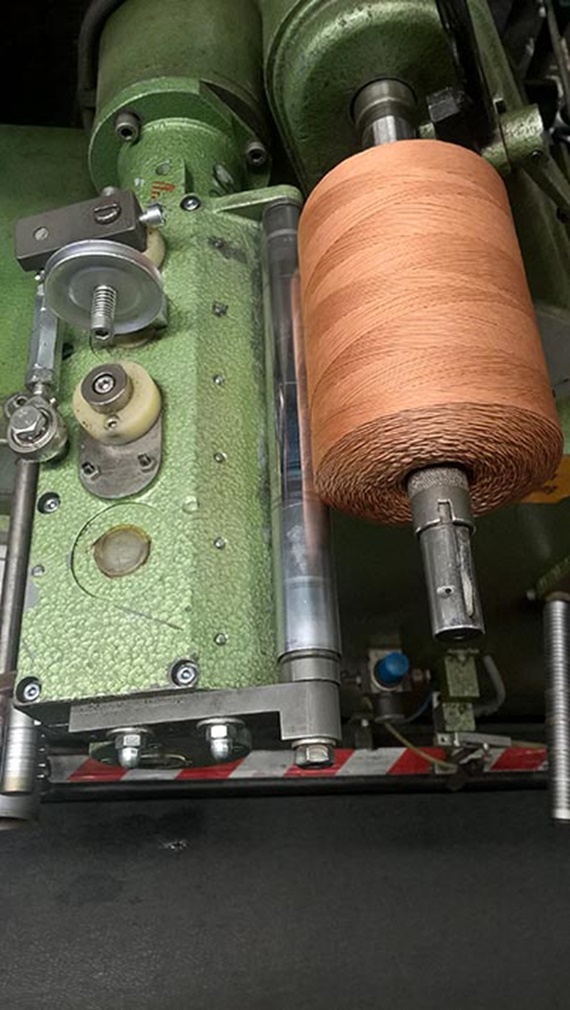

Winding machine_02

Here, you can find the products used

iglidur® I3-PL for 3D printing via SLS
