triflex® R TRE

Assembly Instructions

TRE-assembly click to enlarge

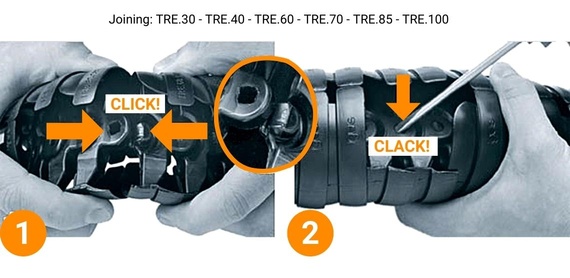

Joining: TRE.30 - TRE.40 - TRE.60 - TRE.70 - TRE.85 - TRE.100

Hold two pieces together at inner radius and move socket up against the ball´s wedged end. Push until a klicking sound indicates a secure fit of socket onto the ball.

(chain section exposed for the purpose of demonstration)

TRE-assembly click to enlarge

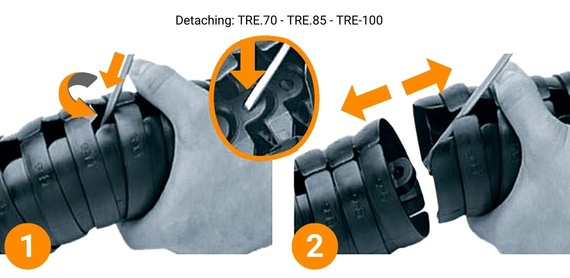

Detaching: TRE.70 - TRE.85 - TRE-100

  • Insert screw driver into the opening of the socket from the top. Then twist apart, counter-clockwise.
TRE-assembly click to enlarge

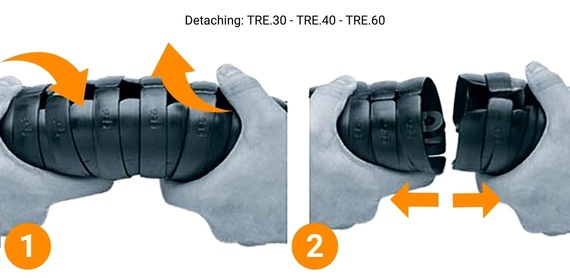

Detaching: TRE.30 - TRE.40 - TRE.60

  • Bend triflex® into its radius and twist apart, counter-clockwise
TRE-assembly click to enlarge

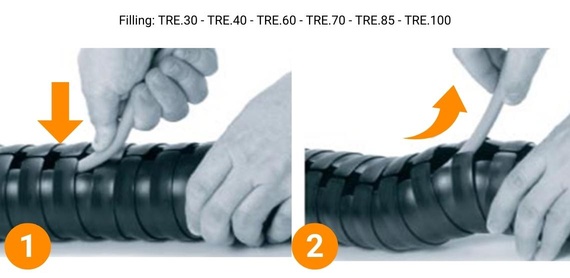

Filling: TRE.30 - TRE.40 - TRE.60 - TRE.70 - TRE.85 - TRE.100

  • Easy to fill - simply press cable in and easy to take the cables out
