cradle-chain E2.1.CG

The first energy chain made from 100% recycled material - cradle-chain E2.1.CG

World premiere: the first energy chain made from recycled material. Based on the igus chainge programme, the new E2.1.C.G e-chain® catalogue range was created using 100% recycled material - all tested in the igus laboratory.

This is how the igumid CG material is created:
We collect the old energy chains. The material is sorted by type, cleaned and processed to virgin material quality. The E2.1.CG product range is created from the new igumid CG material.

Make a request now

Tech up

Complete e-chain product range made of the new resource-saving material igumid CG
5 series / 28 chain types available from stock
Same technical specifications and load limits as the energy chain made of standard material igumid G

Cost down

Price-neutral to e-chains® in standard material

Proof

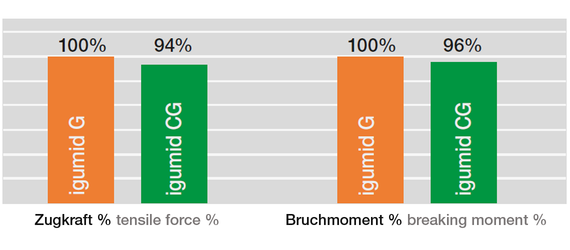

igumid CG material tested in the igus laboratory

Sustainability

28% CO2 savings according to EPD
Sustainable raw material cycle
"Cradle to cradle" potential
Have your energy chain recycled at the end of its life cycle with the igus chainge recycling program. No matter what manufacturer.

Product range:

Part number	Inner height [mm]	Outer height [mm]	Inner width [mm]	Outer width [mm]	Bend radius [mm]	Pitch	Pitch
E2.10.CG*	10.1	15	10 / 16 / 20	17.4 / 23.4 / 27.4	18 / 28	20	Request now
E2.15.CG*	14.4	19.3	20 / 30 / 40	27.8 / 37.8 / 47.8	28 / 38	20	Request now
E2.21.CG*	21	28	50 / 68	63.8 / 81.8	48 / 63	33.3	Request now
E2.26.CG*	26	35	57 / 77 / 103	74 / 94 / 120	75 / 100	46	Request now
E2.38.CG*	38	50	90 / 125 / 150	107 / 142 / 167	100 / 150	56	Request now

*Available from summer 2022

True unmixed recycling: how to do it

You can send us your old plastic energy chains instead of simply disposing of them with other products as part of your industrial waste. The key is that we accept all energy chains, even those from other manufacturers. We collect returns with the aim of maximising recycling, either in our own production or through the use of a recycling partner who will send the material for reuse. We separate the material on site and shred everything we can use for production into regranulate. We reward your commitment with an igus voucher based on the weight of the chain sent to us.

Learn more now
