Cable carrier load diagram use for unsupported, short travels

Important information

Fill weight - Weight of all cables and hoses, including contents (for media hoses) within the energy chain, typically given [kg/m]

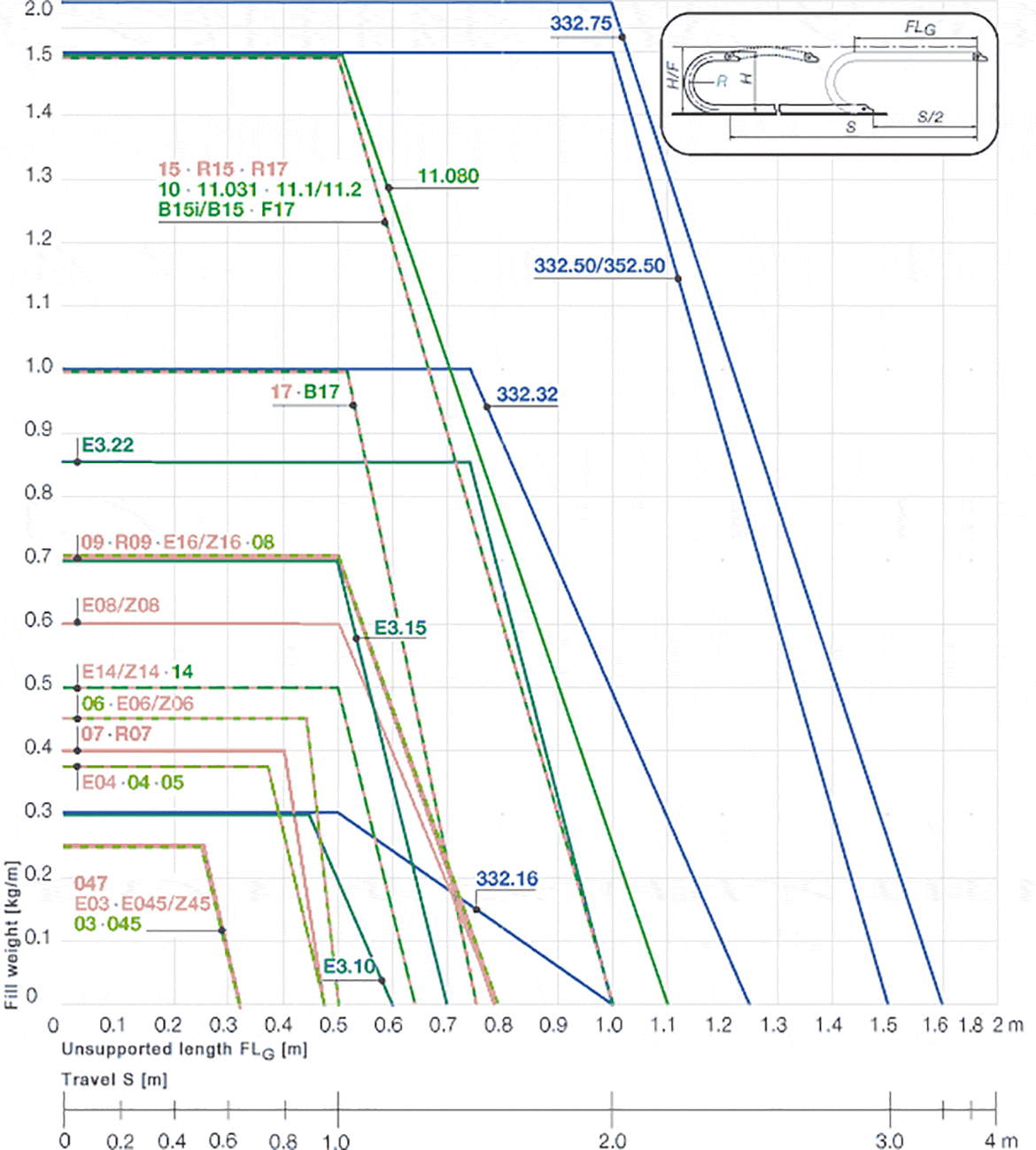

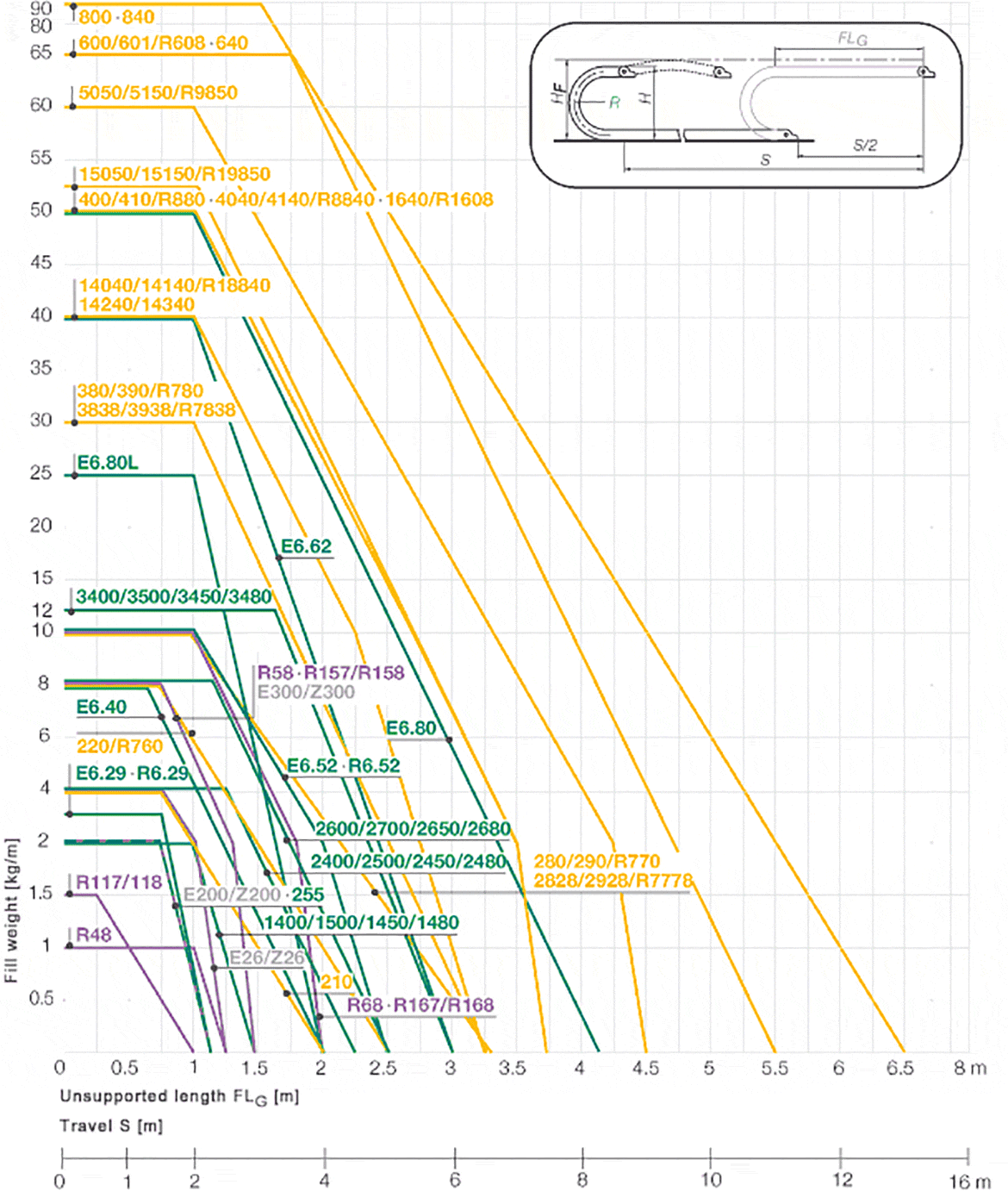

FL_G - unsupported energy chain cable carriers with straight upper run

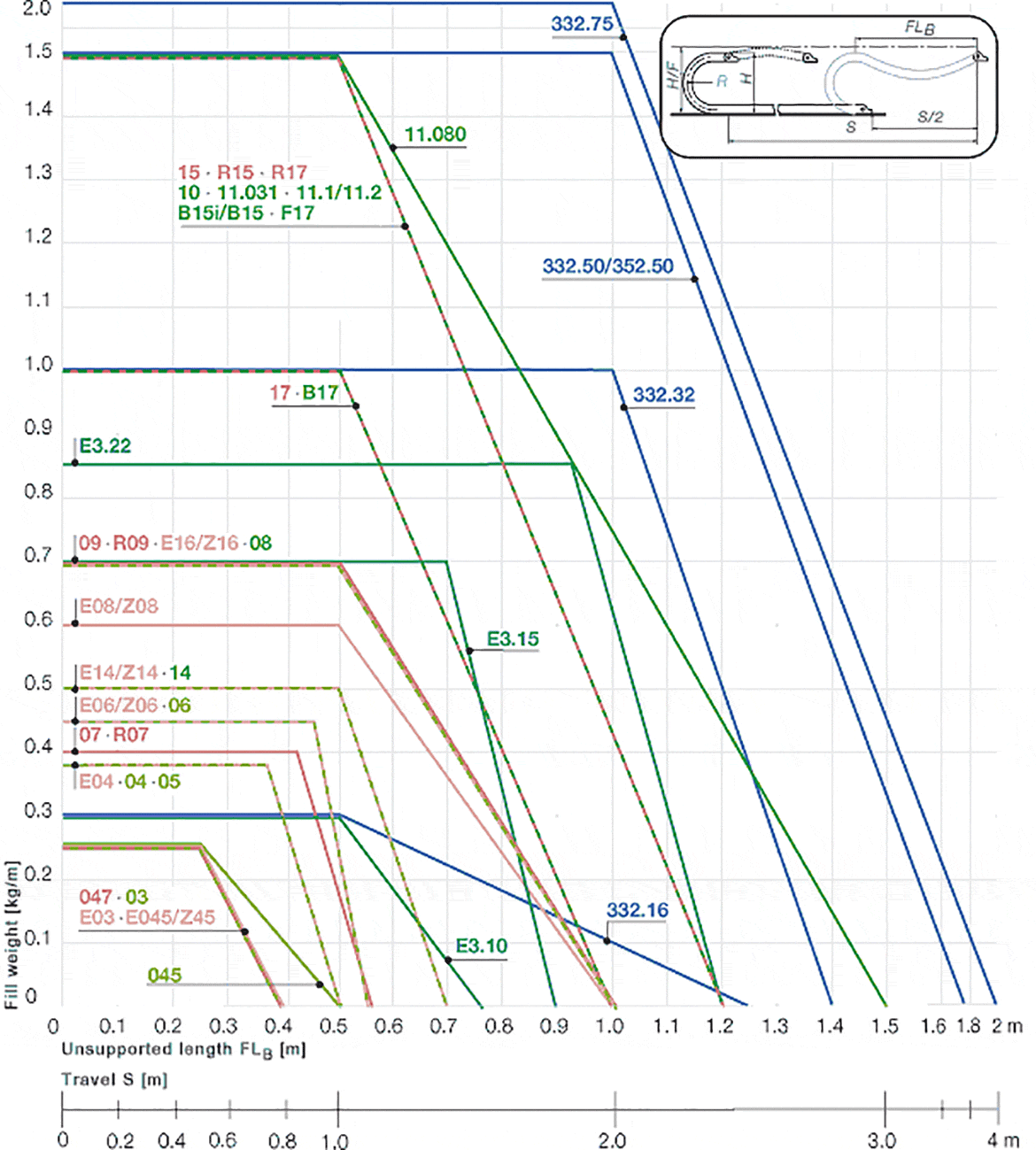

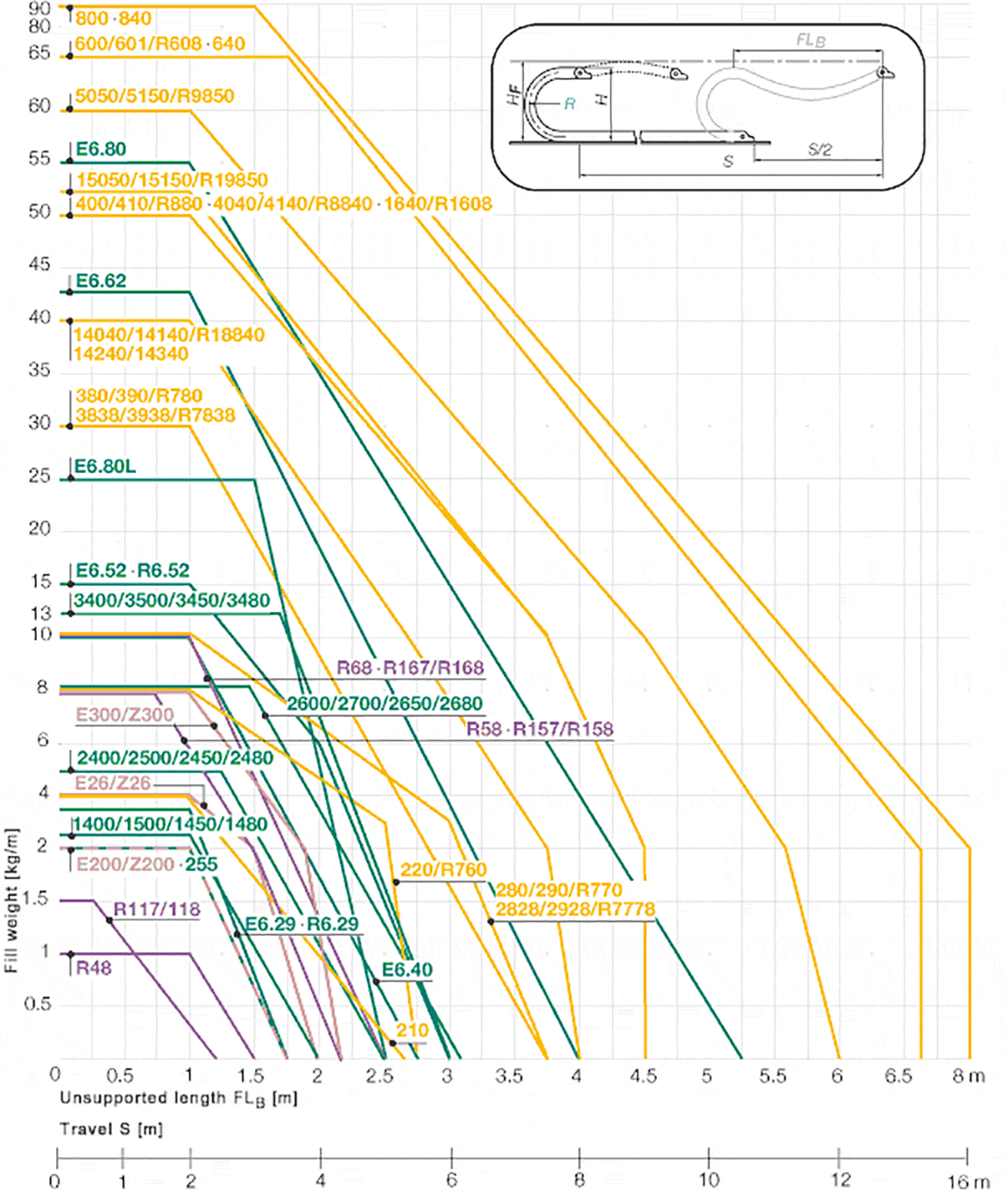

FL_B - unsupported energy chain with permitted sag

To the right of the F_B graph of the diagram, the application is shown in "critical sag", which must be avoided!

These values are essential for: Finding a suitable energy chain cable carrier for your fill weight and travel distance. Identifying the max. load for the selected energy chain. If you cannot meet your application demands using these parameters, keep in mind these specifications are conservative maximum values.
In individual cases, they can be exceeded by up to 30%. Special solutions are also possible. Please consult igus®

The maximum travel - always amounts to 2 x FL_G or FL_B if the fixed end is in the center of the travel. In this case, the following applies:
energy chain length: L_k = S/2 + K
S = Length of travel
R = Bending radius
H = Nominal clearance height
H_F = Required clearance height
K = π * R + "safety"
Add-on for bending radius (K is taken from the data tables of the individual igus® Series)
