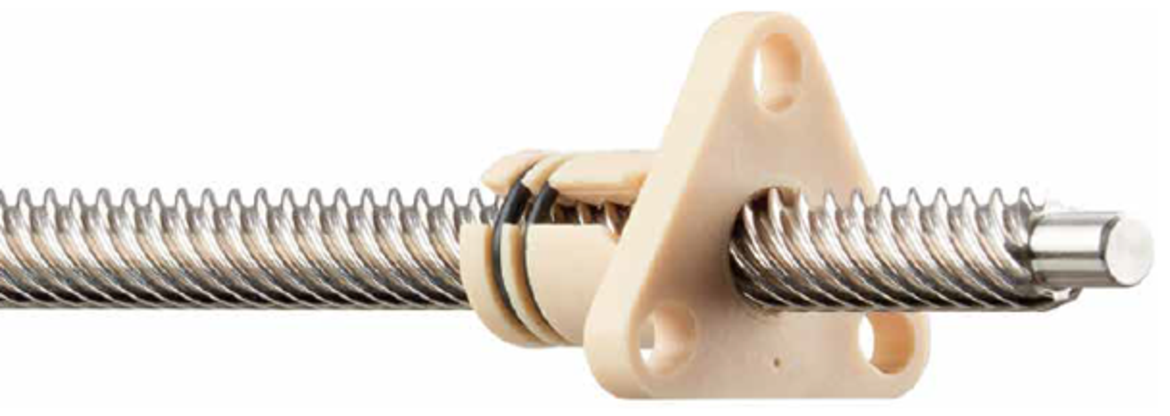

dryspin® lead screw nut with camber

For spindle adjustments which require especially quiet running and zero play, in addition to zero lubrication, and which have to be cost-effective at the same time, the new DryLin® lead screw nuts with camber offer the ideal solution. Available for self-locking trapezoidal threads as well as for dryspin® high helix threads, the new LC lead screw nuts take advantage of constant anti backlash forces within a compact installation size.

100% lubrication-free

For low loads

Dirt-repellent

Available for efficient dryspin® trapezoidal thread (Ds6.35x2.54 to Ds10x50)
and self-locking trapezoidal thread (Tr6x2 to Tr10x3)

Typical applications: Format adjustments, Medical devices, 3D printers, etc.

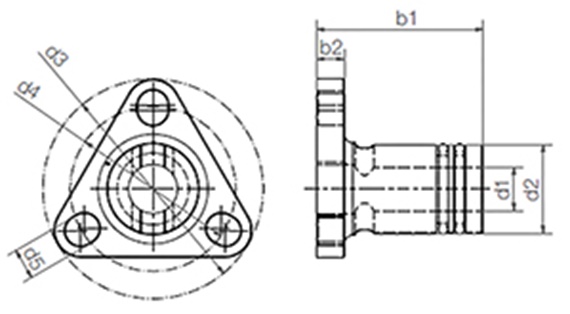

Dimensions [mm]

Ordering number	thread	d2	d3	d4	d5	b1	b2	max.stat.	Max. idling torque
DST-...	d1 x p							F axial [N]	(with an O-ring)
DST-JFRM-LC-0001-DS6.35X2.54	Ds6.35X2.54	0.39	1.12	0.87	0.15	0.82	0.16	9	0,005-0,02	28.14 USD
DST-JFRM-LC-0001-DS6.35X5.08	Ds6.35X5.08	0.39	1.12	0.87	0.15	0.82	0.16	9	0,005-0,02	28.14 USD
DST-JFRM-LC-0001-DS6.35X12.7		0.39	1.12	0.87	0.15	0.82	0.16	9	0,005-0,02	28.14 USD
DST-JFRM-LC-0001-DS6.35X25.4	Ds6.35X25.4	0.39	1.12	0.87	0.15	1.11	0.16	9	0,005-0,02	28.91 USD
DST-JFRM-LC-0001-DS8X10	Ds8X10	0.63	1.5	1.11	0.2	1.11	0.19	16.88	0,01-0,03	30.60 USD
DST-JFRM-LC-0001-DS8X15	Ds8X15	0.63	1.5	1.11	0.2	1.11	0.19	16.88	0,01-0,03	30.60 USD
DST-JFRM-LC-0001-DS10X12	Ds10X12	0.63	1.5	1.11	0.2	1.11	0.19	16.88	0,01-0,03	29.00 USD
DST-JFRM-LC-0001-DS10X25	Ds10X25	0.63	1.5	1.11	0.2	1.11	0.19	16.88	0,01-0,03	30.60 USD
DST-JFRM-LC-0001-DS10X50	Ds10X50	0.63	1.5	1.11	0.2	1.11	0.19	16.88	0,01-0,03	30.60 USD
DST-JFRM-LC-0001-DS12X25	Ds12X25	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	32.14 USD
DST-JFRM-LC-0001-DS12X5	Ds12X5	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	30.60 USD
DST-JFRM-LC-0001-DS12X15	Ds12X5	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	Upon request
DST-JFRM-LC-0001-DS14X25	Ds14X25	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	33.74 USD
DST-JFRM-LC-0001-DS14X30	Ds14X30	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	35.42 USD
DST-JFRM-LC-0001-DS14X40.6	Ds14X40.6	0.79	1.66	1.5	0.19	1.73	0.28	28.13	0	37.19 USD
