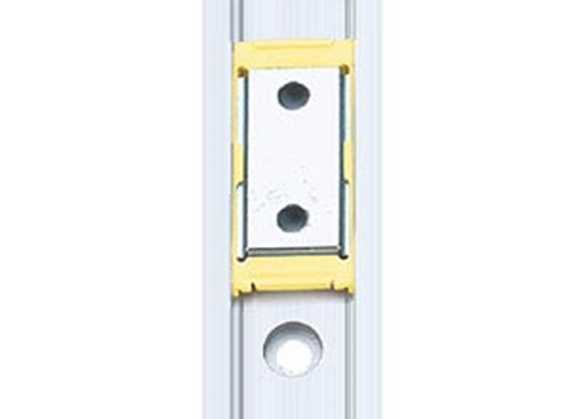

drylin® NK-01-27 low profile linear slide

Part numbers and product data:

Rail	NS-01-27
Carriage with through hole	NW-01-27
Carriage with through hole floating bearing in y-direction	NW-01-27, LLY
Carriage with through hole floating bearing in z-direction	NW-01-27, LLZ
Carriage with through hole floating bearing in y- and z-direction	NW-01-27, LLYZ
Carriage with preload	NW-01-27, P
Rail weight	290 g/m (0.2 lbs/ft)
Carriage Weight	10.8 g (0.38 oz)
Max. rail length	3,658 mm (12 ft)
Hore pattern	Symmetrical (C5 = C6)
Preload force (if applicable)	1 N (0.22 lbf)

Order no.	Weight of rail	Max. rail lengths	Price / m
	[g/m]	[mm]
NS-01-27	290	3000	51.40 USD
NS-01-27S	290	3000	47.74 USD
NS-01-27-AR	290	3000	57.86 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Order no.	Designation	Weight of carriage
		[g]
NW-01-27	Carriage	10.8	5.45 USD
NW-01-27-HT	Carriage clipped, temperatures up to 130°C	10.8	24.59 USD
NW-01-27-P	Carriage with preload	10.8	5.45 USD
NW-01-27-LLY	Carriage with mounting nuts floating bearing in y-direction	10.8	5.45 USD
NW-01-27-LLZ	Carriage with mounting nuts floating bearing in z-direction	10.8	5.45 USD
NW-01-27-LLYZ	Carriage with mounting nuts floating bearing in y- and z-direction	10.8	5.45 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-01-27	9.5	14	20	30	40	0	1.5	0	0	0	10.8
NW-01-27-HT	9.5	14	20	30	40	0	1.5			0	10.8
NW-01-27-P	9.5	14	20	30	40	0	1.5		0	0	10.8
NW-01-27-LLY	9.5	14	20	30	40	0	1.5		0	0	10.8
NW-01-27-LLZ	9.5	14	20	30	40	0	1.5		0	0	10.8
NW-01-27-LLYZ	9.5	14	20	30	40	0	1.5		0	0	10.8

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

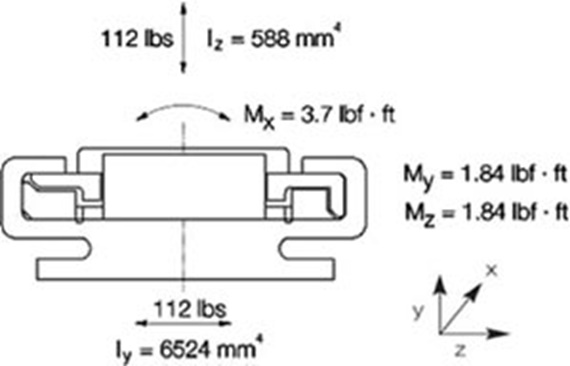

Static load capacity and moments of inertia of an area

M_y = 1.844ft lbs (2.5 Nm)
M_z = 1.844ft lbs (2.5 Nm)

Ordering a complete system

Configuration in few steps:

1. Select the number of carriages
2. Select the type of carriage
3. Enter the rail length in mm
4. Select the carriage options

Hint:

Detailed information can be found in the drawings and tables above, as well as in the linked-to pages below. You can obtain precise specifications on floating bearing options in Design Rules.

1

No floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
