Configurator for drylin® N – low-profile linear guide system NW-02-17

Ordering a complete system

Configuration in just a few steps:

1. Choose the number of carriages
2. Choose the type of carriage
3. Enter the carriage length in mm
4. Choose the carriage options
5. Choose the rail options

Note:

You can find detailed information in the drawings below and also on the pages listed below. You can find more precise information on the floating bearing types within the construction rules.
1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

Floating bearing application

drylin® NK – complete system

Step 1

Enter the desired quantity of carriages.

technical drawing
Number of carriages:

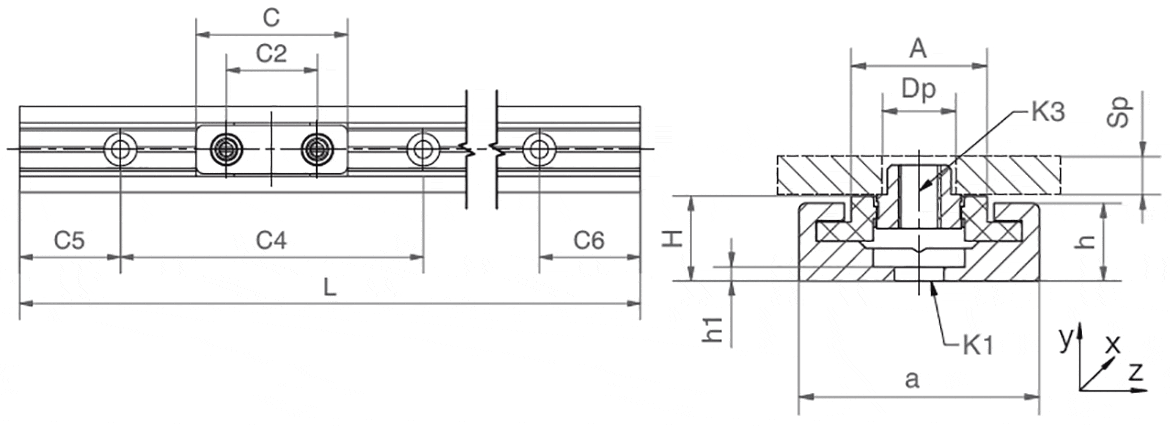

drylin® N rail + carriage drawing drylin® NW
Technical drawing drylin® NW

Dimensions and technical data


Guide rails

Part No.L
max.
aC4C5
min.
C6
min.
hh1K1ly
[mm²]
lz
[mm²]
Weight
[g/m]
NS-01-17(-AR)2.00017602049,55,50,9Ø3,51.700120150

Guide carriages

Part No.H
±0,35
ACC2K3SpDpWeight [g]
NW-02-17(-P)69,62014M32,55,01,7
NW-22-17-3069,63018M32,55,02,4
NW-22-17-4069,64028M32,55,02,6
