DryLin® NT telescopic guides

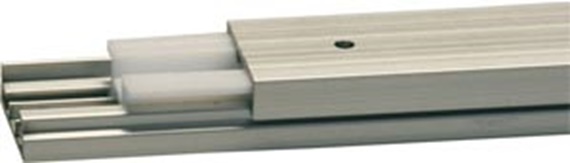

Completely self-lubricating linear extensions in continuous stroke lengths of 100mm to 600mm - maximum pulled-out length: 1200mm. The telescopic systems consist of anodized aluminum guide rails and a gliding block made of the proven iglide material. By the in-compounded solid lubricants, iglide tribopolymers enable dry operation in every application. The advantage - besides being maintenance-free - is the carefree use in clean hygienic environments. No oil or fat can be transmitted to other products, clothing or people. Applications even in cleanroom air showers were already implemented. But the dry operation also has advantages in the dirt accumulation area. Dirt particles do not stick to the guide and do not become a sticky mass.

As an option, all telescopic guides can be delivered with a detente in start-medium-end position. Requirements for individually positioned locking positions can be met.

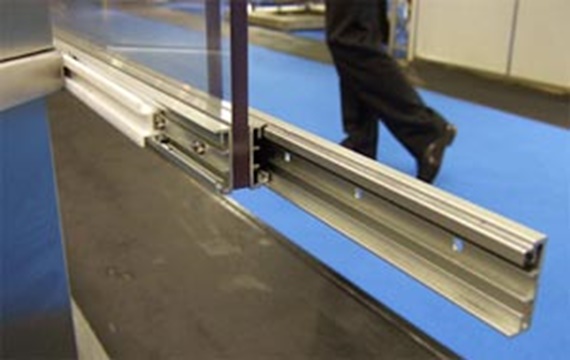

Detailed view: DryLin® telescopic rail in a guard door adjustment.
