drylin® WJRM hybrid linear bearing

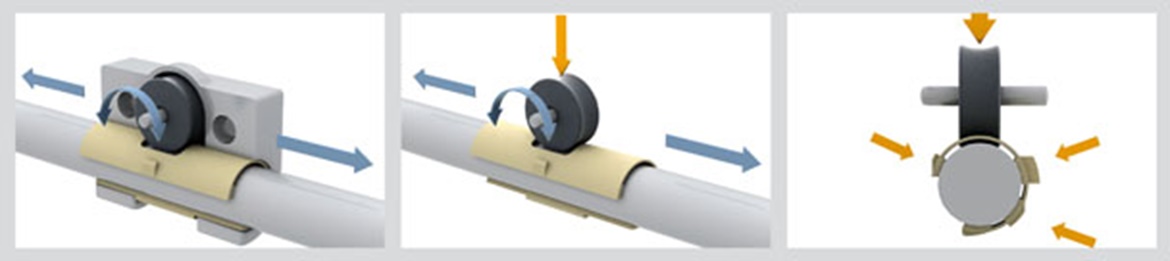

Both rolls and slides

More information

More about selected part:

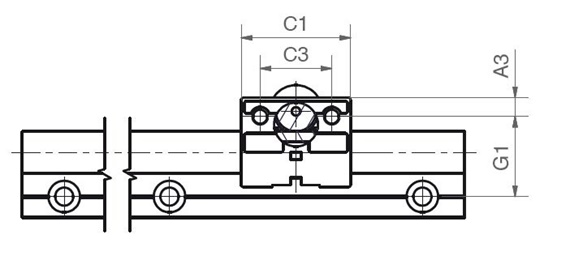

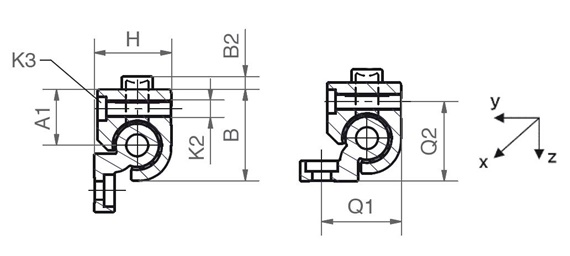

Part. No.	Weight	H	B	B2	C1	C3	G1	A3	A1	K2	K3	Q1	Q2	stat.
											Flat-			load
	[g]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	head	[mm]	[mm]	[lbs]
WJRM-02-10															Upon request
WJRM-01-10	46	18	26	2.5	35	22	27	6.5	16.5	M6	M5			250	17.83 USD
WJRM-01-16	131	27	34.5	5	48	30	33	9	25	M8	M6	32	28	400	29.55 USD
WJRM-01-20	232	36	42.5	6	52	34	38	9	30	M8	M6	37	37	550	34.72 USD
