Save installation space and gain design freedom with chainflex® control cables

Absolutely cost-efficient control cables with up to 20% smaller outer diameter and reduced bend radius

The cables were not optimised for small bend radii but are thinner and can therefore be used in smaller radii. And yet tested as always in the chainflex laboratory and with 36-month guarantee.

Order online now!

This reduction in installation space was achieved by changing from PVC core insulation to TPE core insulation. This design feature not only saves the installation space in the chain, but also reduces the radius of the e-chain with the same bending factor. This new generation of chainflex control cables is therefore particularly suitable for applications such as in wood/stone processing or in machine tool construction.

Tech up

20% smaller outer diameter for thinner cable
smaller bend radius

Cost down

Saving of installation space
Use of smaller, and therefore more cost-effective chain
Reduction of harnessing work due to absence of the need for filler material
36-month (or 5 million double strokes) chainflex guarantee
Reduce process costs with igus online tools

Proof

UL approval with new UL Style
Tested in the chainflex test laboratory
Predictable online in the chainflex service life calculator
UL verified: confirmed by external testing institution

Sustainability

Conservation of resources by dispensing with filler material
Delivery in feet-precise desired length without waste or residual stock

20% smaller outer diameter

UL certification

5 million double strokes guaranteed

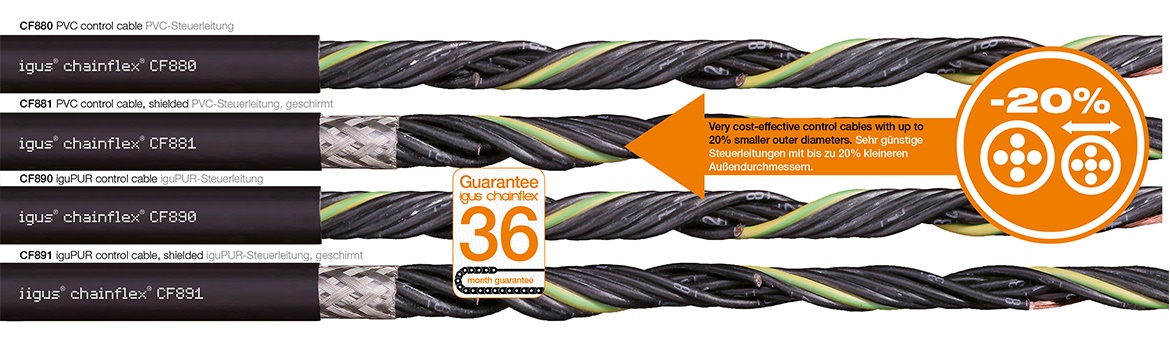

CF880/CF881: PVC outer jacket for high cost efficiency

CF890/CF891: iguPUR outer jacket for oil-resistance

36-month guarantee

Why chainflex®? Because our control cables reduce costs & improve technology

chainflex price check for control cables

Electrotechnically equivalent energy chain cables with core cross section of 4x1.5mm²

Control cable CF880, bend radius 12.5xd and PVC outer jacket: low-cost version
Control cable CF5, smaller bend radius 6.8 xd with PVC outer jacket and oil resistance: greater technical advantage leads to slightly higher price per metre
Control cable CF98, cable resistant to oil/organic oil, with TPE outer jacket and a bend radius of only 4xd: higher price due to greater technical advantage

Benefit from our variety of cables. From low-cost solutions with PVC outer jacket to high-end TPE cables. Everything in line with our motto: Cost down, life up!

chainflex product data sheets

Please feel free to read all details and specifications of the latest generation of chainflex M cables here. In our product data sheets you will not only find all the facts once again, but also sectional views and core markings for each individual cable.

Click here

36 month chainflex guarantee

We issue a 36-month guarantee on our cables with confidence, as we are able to make reliable predictions about the service life of our cables due to over 30 years of experience and 700 concurrently undertaken experiments in our 3,800 m² test laboratory.

Ready-to-connect cables

Offering around 4,600 harnessed motor, servo, signal and encoder cables in accordance with 24 manufacturer standards, igus is the world's No. 1 when it comes to harnessed cables for use in energy chains. With 7 cable qualities, we always offer the most cost-effective drive cable that works.
