  2. drygear® Apiro connection to drive and lead screw technology

Modular connection: drive technology/
lead screw technology and drygear® Apiro gearbox

Apiro connection to linear units

Connection to and synchronisation with drive and lead screw technology

Our "Apiro" gearbox system for a wide variety of kinematic elements and superstructures  was named for the Greek word for "infinite". Individual applications can be implemented with the drygear® Apiro gearbox system in an extremely modular and cost-effective manner.
Typical application areas are lane adjustments, pusher tasks, gearboxes with various gear ratios, slewing rings and rotary axes. The new connection to drylin drive technology and dryspin lead screw technology makes you even more flexible in implementing individual automation systems.

Connection to drylin® drive technology

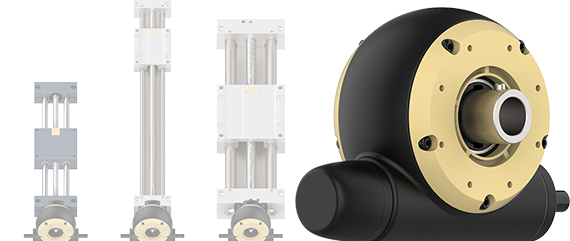

Apiro connection to a linear unit The direct connection to drylin®  SLW and SHTdrive technology is mounted on the output pins of drylin® lead screw units.  This allows several Apiro gearboxes to be connected in series and drylin® drive technology synchronised.
Available options are:
  • SHT-12/SLW-10xx
  • SLW-1660
  • SHT-20
  • SHT-BB-20/SLW-BB-2080
  • SHT-30
  • SHT-BB-30/SLW-BB-25120
Possible area of application: the packaging industry
Submit an enquiry now

Connection to dryspin® lead screws

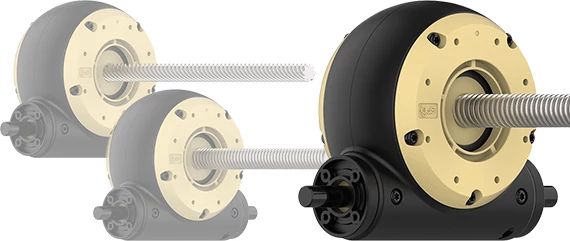

Apiro connection to the lead screw The simple, direct connection of Apiro gearboxes to the output of dryspin® lead screw technology allows lead screw movement depending on the thread pitch. Lead screws of 10, 12, and 16mm diameter can be connected to various pitches.
Available options are:
  • DS10x25
  • DS12
  • TR16x2



Possible area of application: the packaging industry
Submit an enquiry now
Tech up with igus news

Improve technology

  • Modular drygear® Apiro gearbox system expansion
  • Combination and synchronisation with the drylin® drive technology system
  • Set-up instructions including parts list
Cost down with igus news

Cost down

  • Cost-effective gearboxes made of iglidur polymer material
  • Modular design for manual and motor-operated adjustments
  • Fast conversion possible
  • Assembly without any special tool
evidence from igus news

Proof

  • Easy assembly in seconds
  • Maintenance-free through the use of self-lubricating igus polymers
recycling with igus news

Sustainability

  • Completely lubrication-free operation
  • Lightweight components

Infinite combination options with the drygear® Apiro gearbox system

Technical information

Connection to drylin® drive technology

Part number Hole patternShaft ØAttachment to axis  L1L2L3H1B1S1
RL-A54.011340x208SLW-166055402062138
RL-A54.01144010SHT-12/SLW-10xx554020621310
RL-A54.01154012SHT-20554020621312
RL-A54.01164014SHT-30/SLW-1660554020621314
RL-A54.01174812SHT-BB-20/SLW-BB-2080654836621312
RL-A54.01184814SHT-BB-30/SLW-BB-25120654836621314

Connection to dryspin® lead screw technology

Part number TransmissionB1Ø S  H1H2L1L2G1
RL-A10.01901:4508873190110TR16
RL-A10.01911:32508873190110TR16
RL-A10.01921:64508873190110TR16
RL-A10.01931:4508873190110DS10
RL-A10.01941:32508 873190110DS10
RL-A10.01951:64508873190110DS10
RL-A10.01961:4508873190110DS12
RL-A10.01971:32508873190110DS12
RL-A10.01981:64508873190110DS12
