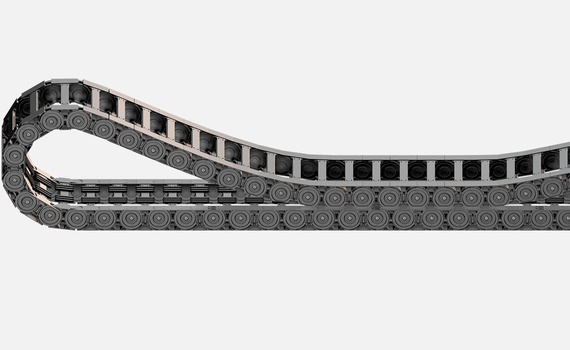

P4HD.56R rol e-chain

For maximum availability

The new heavy-duty rol e-chain meets all the relevant requirements for container cranes of the next and next-but-one generations.
Longer and longer travels, greater dynamics, short stress cycles, zero failures: in brief, this is what is demanded by the manufacturers of ship-to-shore container cranes for energy chains on the crane bridges. The new P4HD.56R fulfils these requirements - and offers maximum economic efficiency.

Submit an enquiry for the P4HD.56R now

Longer service life: maintenance-free tribo-polymer plain bearings

Secure guidance: comb-like autoglide crossbars

Prediction maintenance with i.Sense: optional

Tech up

Developed for the coming generations of STS cranes
Service life extended again (compared to P41.56R) + 50%
Everything re-designed: rolling elements, side bands, joining links
Integration of predictive maintenance sensors possible

Cost down

Low maintenance
Minimised downtime (failure always results in high costs)
Retrofitting very easy - guide troughs remain structurally identical

Proof

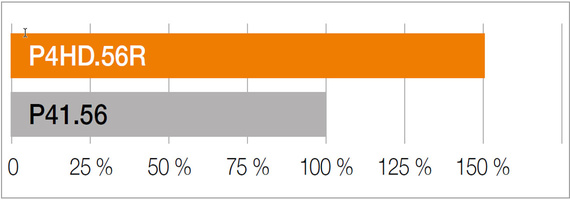

50% longer service life expectancy than the proven P4.1 series

Service life expectancy

Sustainability

57% drive power, saving energy
Have your energy chain recycled at the end of its service life in the igus chainge recycling programme.
igus supports the circular economy of plastics and invests in chemical recycling.

"Chains for cranes®" next level:
we want a service life of 15 years for e-chain systems - on every crane. This is our development goal and can also be found in the functional specifications for the new P4HD product range. New standards in container shipping are demanding more and more of energy chains used on STS cranes. igus, the energy supply specialist, presents a new generation of extremely long-lasting rol e-chains specially developed to meet these new challenges – the P4HD.56R.

Product range:

Part No.	Inner height	Outer height	Inner width	Outer width	Bend radius
P4HD.56R	56 mm	84 mm	187 - 300 mm	269,5 - 382,5	250/300/350mm	Submit an enquiry now

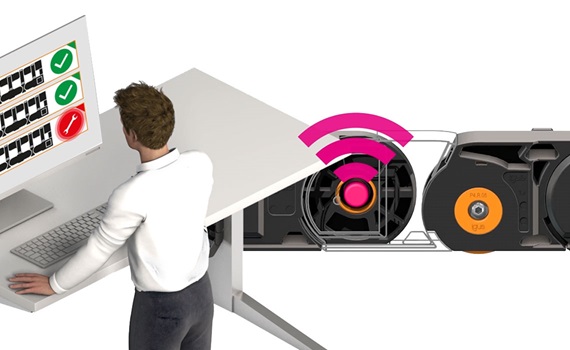

Additional feature: predictive maintenance with smart plastics

In the latest development stage of the igus rol e-chains, the use of maintenance-free, tribo-polymer plain bearings in the connection of the e-chain links also considerably lengthens the service life. As an option, the new P4.1 can be fitted with smart monitoring sensors. This means that, when a defined wear limit is exceeded, a signal is sent to the igus i.Cee:plus communication module, the signal is then used to plan maintenance of the rol e-chain in advance. The sensor is integrated into a standard side section of the chain but this does not restrict the usable inner width in any way.

Find out more

Free white paper:

Triple E-class container ships and the requirements of energy supply for STS cranes

This white paper deals with the following topics, amongst others:

The challenge: cranes for Triple E-class container ships
Crane availability and dependability requirements
A comparison of energy and signal supply lines to the crane trolley (festooning, busbar systems and energy chains)
Technological outlook: rol e-chains

Download white paper now

The revolution of the rol e-chain

The roller energy chain has been the tried-and-tested energy supply for long travels for about 20 years. The successful design that characterises all our linear energy chain systems is supplemented by rollers made of stainless steel, which upgrade the energy chain to an energy supply for heavy-duty applications. As the energy chain rolls and does not glide, it runs silently and with low vibration. The wear is significantly lower than with a design without rollers, and the power needed for the movement is also about 57% lower.

More information

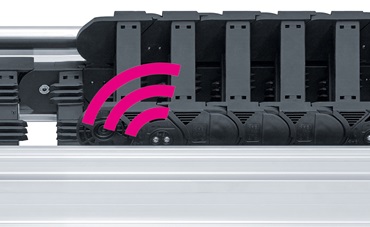

rol e-chain® P4.1

The P4.1 rol e-chain series make it possible to increase plant safety and availability.

To the P4.1

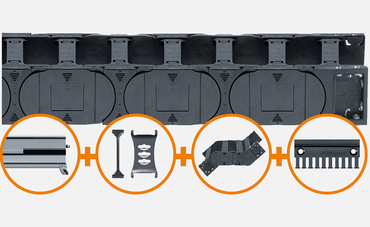

Energy chain complete set

For long travels. Time-saving and cost-effective with complete energy chain sets.

readychain harnessing

With our ready-to-connect energy supply systems, it is possible to reduce the harnessing time by up to 95%.

Further products for crane systems

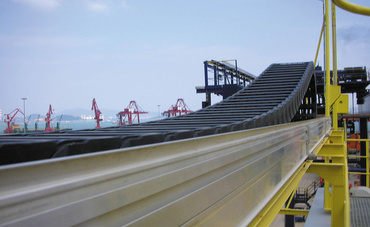

Our energy chain systems have proven their reliability all over the world in ship-to-shore cranes, bulk cargo handling cranes, RTGs, RMGs, Goliath cranes, spreaders and reach stackers . They require very little maintenance, are robust, durable and quiet in use, while also being an alternative to busbars, festooning and motorised cable reels.
