triflex® RSE linear

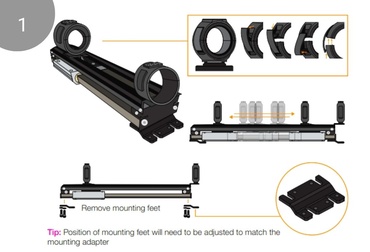

Remove mounting feet

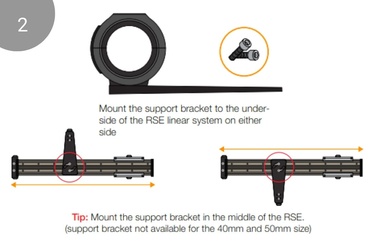

RSE support bracket

• Mount the support bracket to the underside of the RSE linear system on either side.
• Mount the support bracket in the middle of the RSE. (support bracket not available for the 40mm and 50mm size

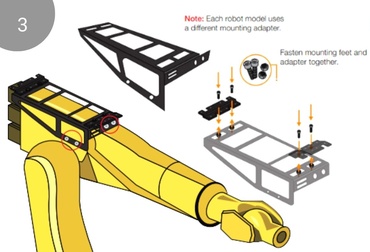

Mounting adapter

• Each robot model uses a different mounting adapter.
• Fasten mounting feet and adapter together.
• Install the mounting adapter on the robot.

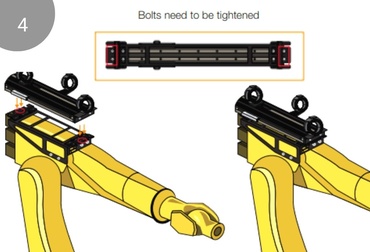

Retraction system installation

• Bolts need to be tightened

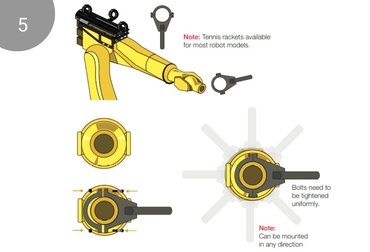

Tennis racket (axis 6 clamp) installation

• Tennis rackets available for most robot models.
• Bolts need to be tightened uniformly.
• Can be mounted in any direction.

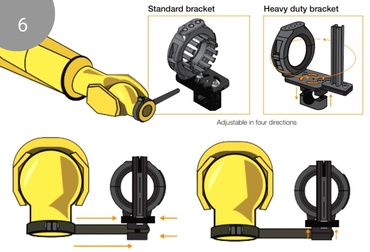

Axis 6 bracket installation

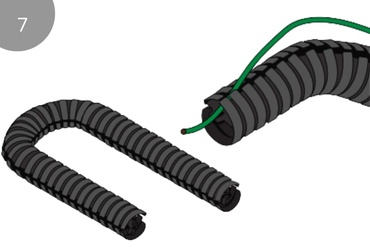

Cable installation

• Easy cable installation possible with triflex® TRE and TRCF only.
• If using TRC, cables will need to be fished through individually

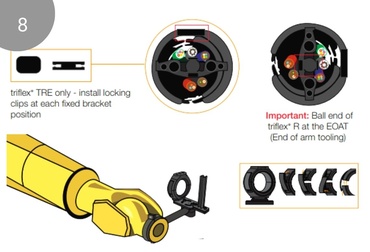

Install locking clips

• triflex® TRE only - install locking clips at each fixed bracket position
• Ball end of triflex® R at the EOAT (End of arm tooling)

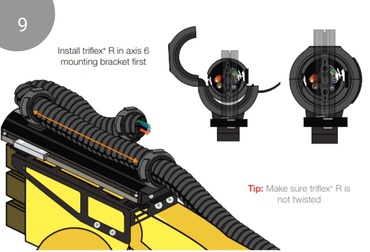

Install triflex® R

• Install triflex® R in axis 6 mounting bracket first.
• Make sure triflex® R is not twisted.

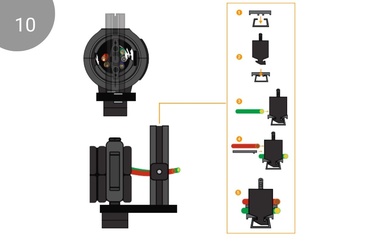

Installing CFX clamps

• Install CFX clamps to secure cables.

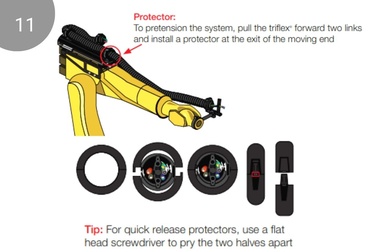

Installing protectors

• To pretension the system, pull the triflex® forward two links and install a protector at the exit of the moving end.
• For quick release protectors, use a flat head screwdriver to pry the two halves apart

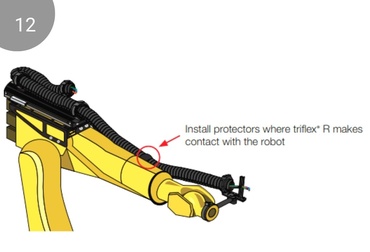

Installing protectors

• Install protectors where triflex® R makes contact with the robot.
