TE Intercontec Connectors (Temporarily Unavailable Due to Market Conditions)

Categories

TE Connectivity

Series M17 / Signal 617

Series M17 / Power 917

Network Connectors

Tools & accessories

Number of products: 46

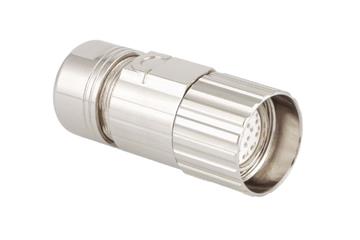

Standard connector, series A, M23 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp
Plug design: Signal connector

Upon request

5 items, thereof ready for shipping:

1 variants within 2 working days

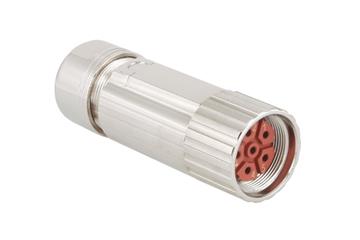

Standard connector series B, M23 power connector

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

Upon request

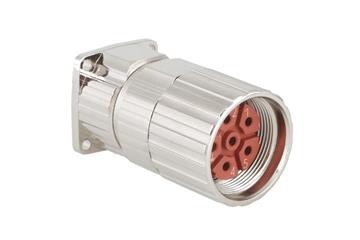

Standard connector, series B, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

Upon request

3 items, thereof ready for shipping:

2 variants within 2 working days

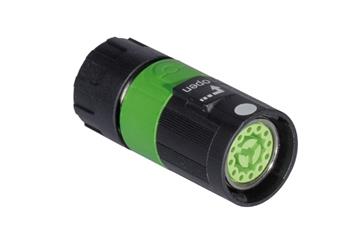

connector, series 615, signal plugs

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp

Upon request

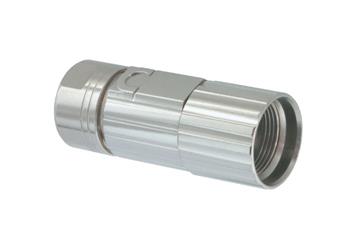

Standard connector, series 617, M17 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM
Insulation body: PBT, UL 94/V0
Contact type: Crimp bush, slotted

Upon request

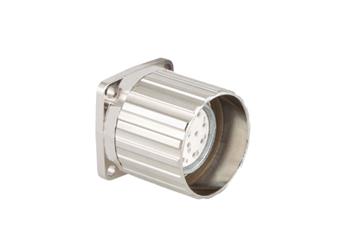

Standard connector, series A, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp contact bush, slotted
Plug design: Bulkhead connector with union nut

Upon request

5 items, thereof ready for shipping:

2 variants within 2 working days

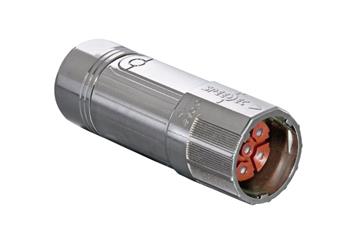

Speedtec connector series B, M23 power connector

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush
SpeedTec

Upon request

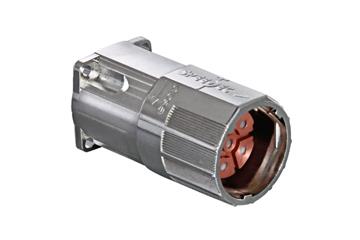

Speedtec connector, series B, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush
SpeedTec

Upon request

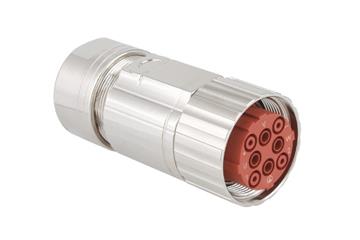

Standard connector series C, M40 power connector

Material: Magnesium die-casting/Aluminium
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

Upon request

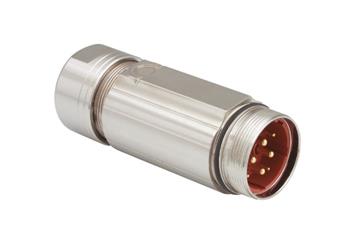

Standard connector, series C, M40 power coupling

Material: Magnesium die-casting/Aluminium
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp pin

Upon request

connector, series 615, signal plugs

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp

Upon request

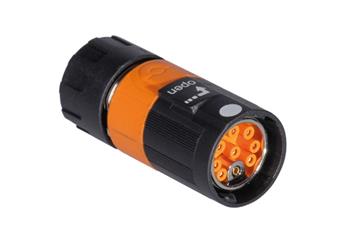

plug-in connector series 915, power connector

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Plastic
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp bush, slotted

Upon request

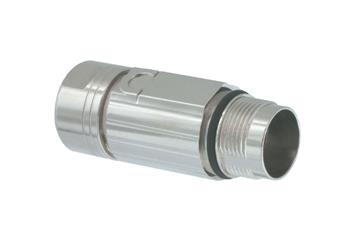

Standard connector, series 617, M17 signal coupling

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM
Insulation body: PBT, UL 94/V0
Contact type: Crimp pin

Upon request

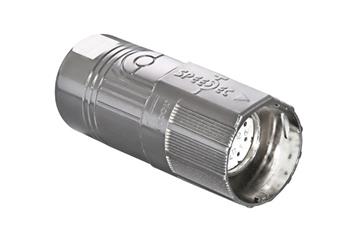

Speedtec connector, series A, M23 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp bush, slotted
Plug design: Signal connector
SpeedTec

Upon request

5 items, thereof ready for shipping:

1 variants within 2 working days

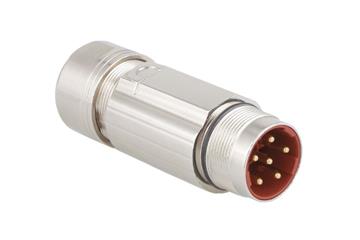

Standard connector, series B, M23 power coupling

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp pin

Upon request
