Module Connect

The Module Connect is an innovative connector concept designed specifically for connecting electrical cables, fibre optic cables and pneumatic tubing. The modular connector system features a space-saving, flat housing and is ideal for applications where multiple cables need to be connected in a confined space. The quick connector can be concealed without additional coding and offers a custom configurable interface. Experience the flexibility and reliability of our modular connector.

Made to measure!

Made to measure!

Here you can find all information for the Module Connect!

Categories

TE Connectivity

Tools & accessories

Number of products: 57

Module Connect 4 cable entries

Instead of many plug-in/disconnect points in a confined space, only one individually configurable interface

Set consists of 5 interfaces or 10 Module Connect plug-in connectors

Upon request

Module Connect 3 cable entries

Instead of many plug-in/disconnect points in a confined space, only one individually configurable interface

Set consists of 5 interfaces or 10 Module Connect plug-in connectors

Upon request

Module Connect fastening element 09140008020

Mounting bracket for wall and floor installation as well as housing connection
Enables flexible assembly
10-pack with 10 fixing elements

Upon request

Module Connect double locking 09140008022

Connects and fastens the Module Connect housing. A complete set includes:

1x Double locking with screw
1x Double locking with nut

Upon request

Module Connect single locking 09140008021

Connects and fastens the Module Connect housing. A complete set includes:

1x Single locking with screw
1x Single locking with nut

Upon request

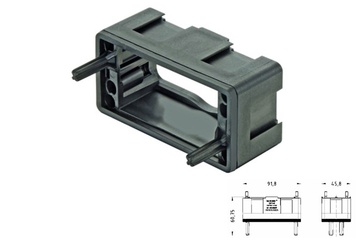

Module Connect housing 09140048101 / 09140008014 / 09140008013 / 09140048001

Available housing parts for the Module Connect.

Upon request

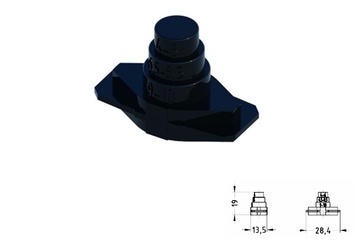

Module Connect bellows sealing insert 09140008100 / 09140008200 / 09140008300

Available sealing inserts for the Module Connect.

Upon request

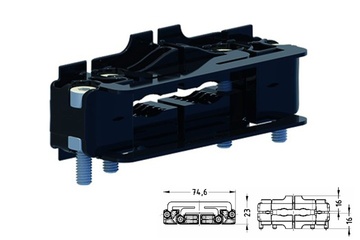

Module Connect strain relief 09140008034 / 09140008033

Available strain relief for the Module Connect.

Upon request

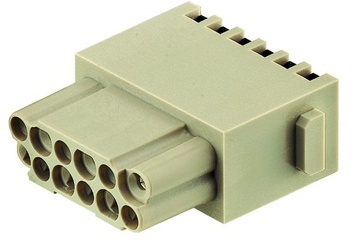

Han EE® Quick Lock module 09140122632 / 09140122732

Number of contacts: 12, silver-plated
Electrical data: 10A / 250V
Connection type: Quick Lock connection
Conductor cross-section: 0.25 ... 1.5mm²

Upon request

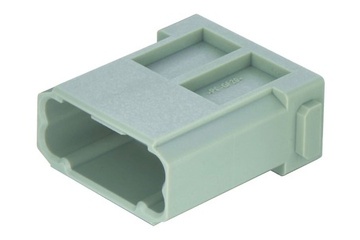

Han DD® module 09140123102 / 09140123002

Number of contacts: 12
Electrical data: 10 A / 250V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Upon request

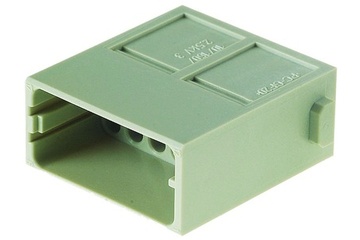

Han® DDD module 09140173001 / 09140173101

Number of contacts: 17
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Upon request

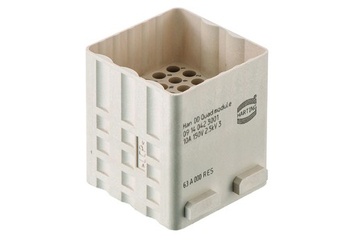

Han DD® Quad module 09140423001 / 09140423101

Number of contacts: 42
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Upon request

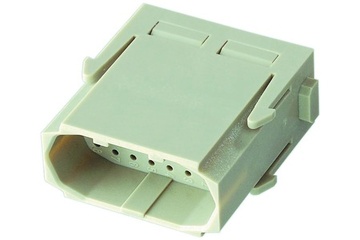

Han® High Density module 09140253001 / 09140253101

Number of contacts: 25
Electrical data: 4 A / 50 V
Conductor cross-section: 0.08 ... 0.52mm²
Connection type: Crimp connection, D-Sub

Upon request

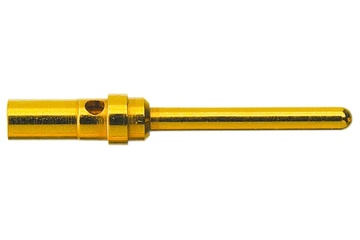

5 A - D-Sub - crimp contacts pin

5A - D-sub - crimp contacts pin (gold-plated or HMC gold-plated) (PU: 100 pieces)

Upon request

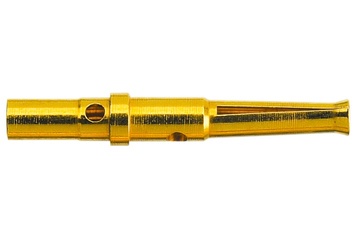

5 A - D-Sub - crimp contacts bushing

5A - D-sub - crimp contacts socket (gold-plated or HMC gold-plated) (PU: 100 pieces)

Upon request
