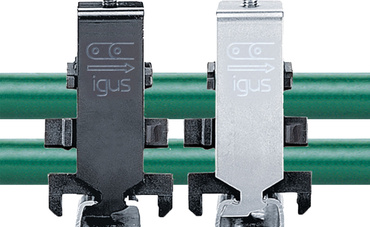

CFX clamps with stacker saddles for pneumatic hoses

Tech up

• Protection of pneumatic hoses against crushing and damage, thus no loss of performance
• High holding force due to "all-round grip"
• The cross section of pneumatic hoses is fully retained
• Coloured identification markings (inserts are blue)

Cost down

• Good price-performance ratio
• Fast assembly without checking the tightening torque
• Protection of the pneumatic hoses against crushing and damage

Proof

• Tests performed at our customer Schwäbische Werkzeugmaschinen
• Tensile force tests in the igus laboratory with PU hoses, e.g. diameter 10mm with 165N (further test results upon request)

Sustainability

• Resource conservation: conversion instead of replacement
• Have your energy chain recycled in the igus chainge recycling program at the end of its service life. No matter what manufacturer.
• igus has been an investor in Mura Technology from the beginning and is helping advance chemical recycling. From plastic waste to crude oil in 20 minutes.

Pneumatic stacker saddle for CFX12

• For hose diameters 4 and 8mm

Pneumatic hose saddle for CFX16

• For hose diameters 6, 10 and 12mm
