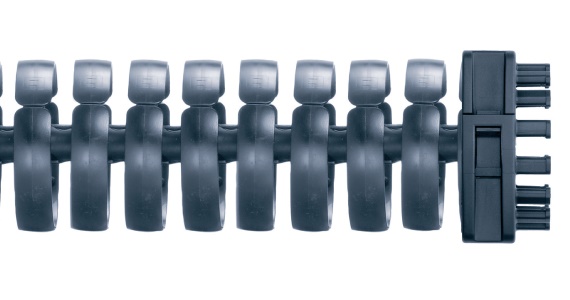

triflex® TRL

The easy alternative with "easy" design

triflex® R TRL is a lightweight and cost-effective cable carrier designed specifically for passive cable management applications, such as managing cables at axis 2. Thanks to an easily-openable design, cables and hoses can simply be pressed into the chain, cutting assembly times by up to 75%. triflex® R TRL should not be used for dynamic applications.

Benefits:

  • Easy fill – fast cable installation and removal
  • Economical option for less demanding applications
  • Easy assembly and disassembly
  • Extremely lightweight
  • Not recommended for axis 3-6
Configure TRL with the online tool
TRL

Shop triflex® TRL fully closed cable carriers:

TRL-30

Inner height Bi 1: 12 mm
Inner height Bi 2: 10 mm
Bending radii R: 50 mm
Pitch: 11.3 mm
Buy triflex TRL-30

TRL-40

Inner height Bi 1: 15 mm
Bending radius R: 58 mm
Pitch: 13.9 mm
Buy triflex TRL-40

TRL-60

Inner height Bi 1: 23 mm.
Bending radius R: 87 mm.
Pitch: 20.4 mm
TRL-60

TRL-70

Inner height Bi 1: 28 mm
Bending radius R: 110 mm
Pitch: 25.6 mm
TRL-70

TRL-100

Inner height Bi 1: 38 mm
Bending radius R: 145 mm
Pitch: 34.5 mm
Buy TRL-100

Additional triflex® R products

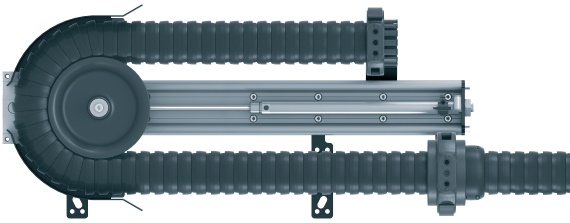

triflex® R retraction rystems

triflex® R retraction rystems

Choose between pneumatic, modular, linear and cost-effective triflex R retraction systems to prevent loops and save space.
Shop triflex® R Retraction systems

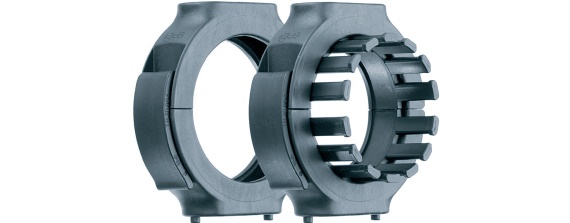

standard mounting bracket

triflex® R assemblies and accessories

Browse our available accessories, including fiber rod modules, protectors, heat shiels and UR clips.
Shop triflex® R assemblies and accessories
