Assembly Instructions for energy chain System E4/light

Video demo for the assembly of System E4 chains

Assembling energy chains and E-Tubes

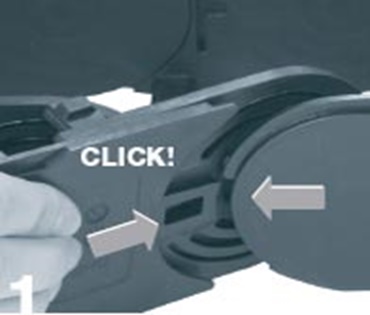

System E4/light Assembly Position at one side...
System E4/light Assembly ...and snap in

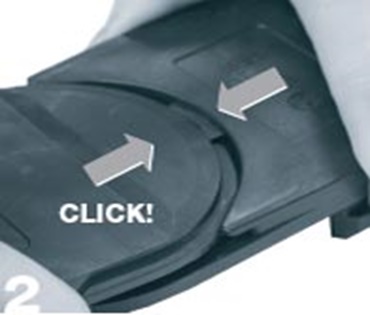

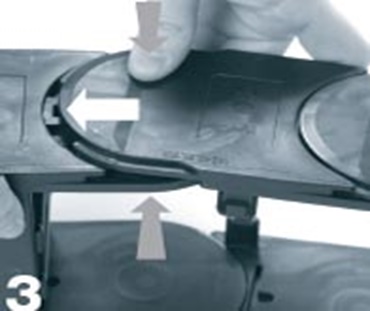

System E4/light Assembly Position opposite side, press together and snap in

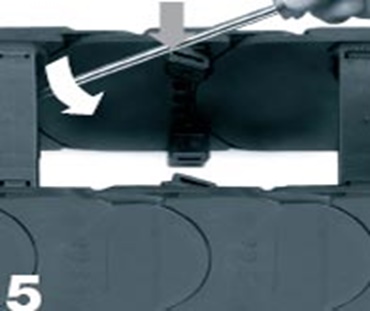

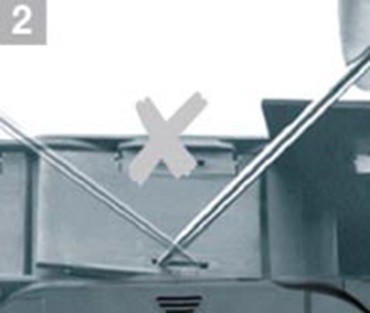

System E4/light Assembly Assemble crossbars - Push down and snap in by using a screwdriver
System E4/light Montage Assemble clips (energy chains with crossbars every other link) - Push down and snap in

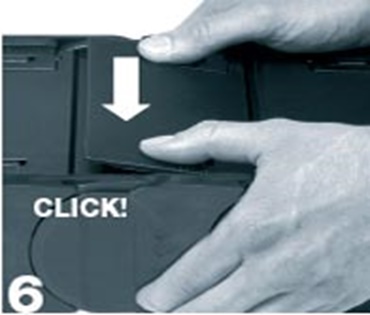

System E4/light Assembly Assemble E-Tube lids/bottoms - Attach to the connector at an angle - Snap in

Separating energy chains and E-Tubes

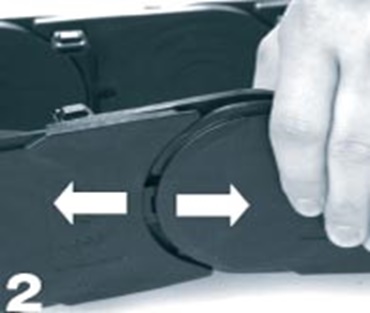

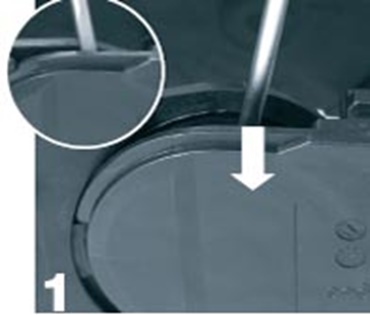

System E4/light Assembly Remove crossbars, clips, and lids on two adjacent chain links. Guide the screwdriver into the slot between side links

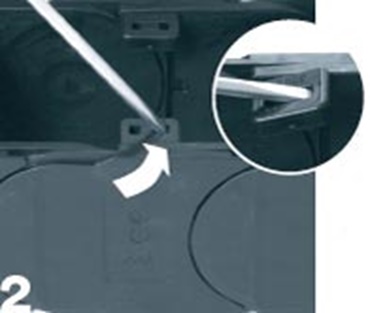

System E4/light Assembly and release it by levering it and separate the energy chain

Opening energy chains

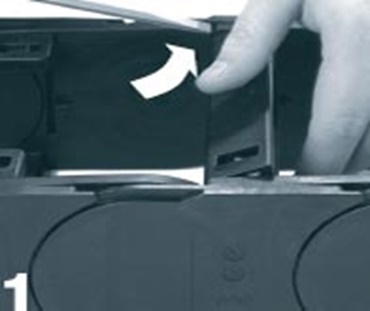

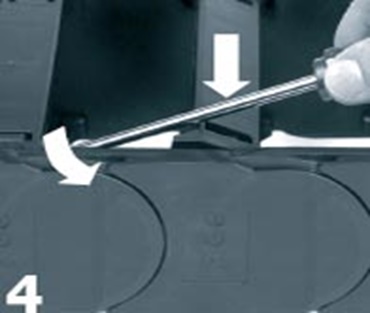

System E4/light Assembly Remove crossbars - Insert screwdriver into the slot, push down, release by lever action

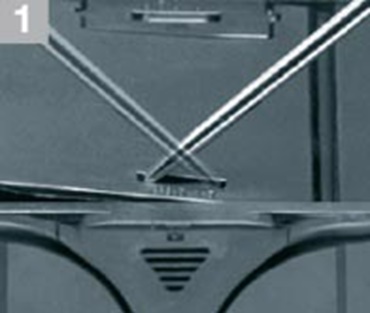

System E4/light Assembly Remove clips - Insert screwdriver into the slot and push down, release by lever action

Opening E-Tube

System E4/light Assembly Remove lids/bottoms - Insert screwdriver into the slot, release by lever action
System E4/light Montage Release only one side to swivel the lid

System E4 - Installation - Video

Installation video as wmv file

Still faster assembly with optional separator with quick release fastener

Installation video as wmv file
