Assembly Instructions for energy chain System E6

Assembling

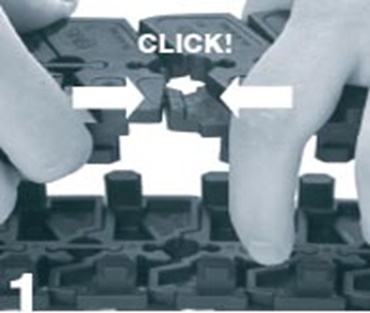

System E6 Assembly Position side links, gently twist...

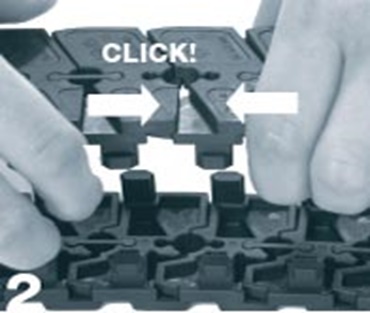

System E6 Assembly ... and snap in

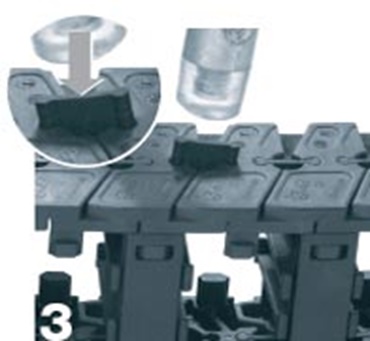

System E6 Assembly Gently reinsert connector by using hammer

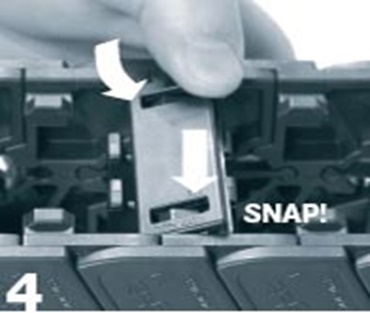

System E6 Assembly Position crossbars, push down and snap in

Separating

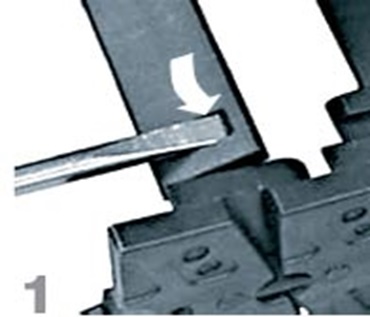

System E6 Assembly Lever crossbars with screwdriver

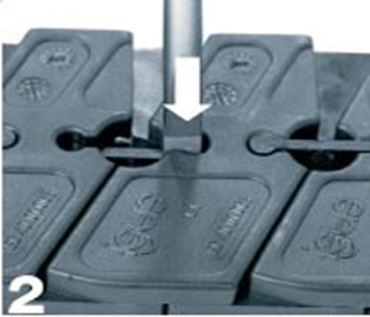

System E6 Assembly Tap gently to remove connectors

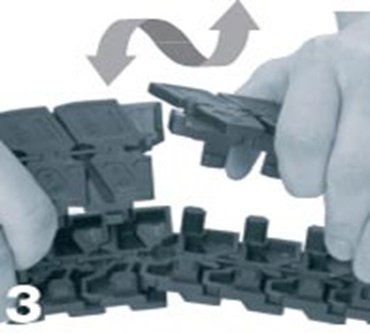

System E6 Assembly Twist and...

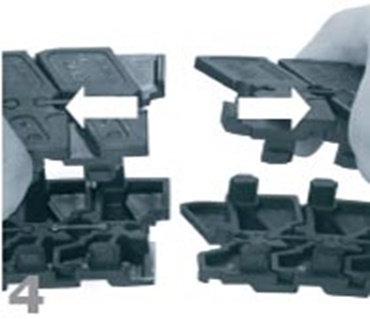

System E6 Assembly ...separate side links

Assembling lids - E-Tubes

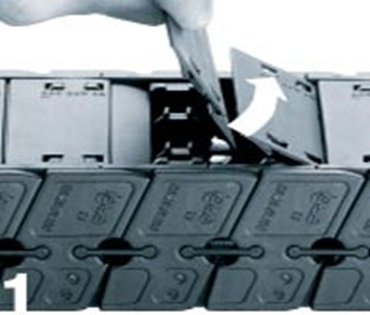

System E6 Assembly Opening: Insert lid

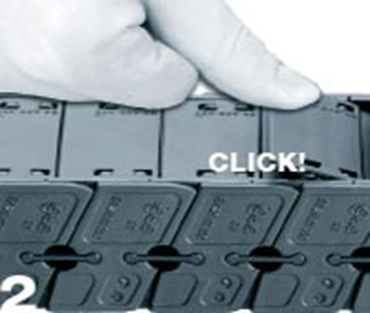

System E6 Assembly Closing: Push down and snap in

Separating lids - E-Tubes

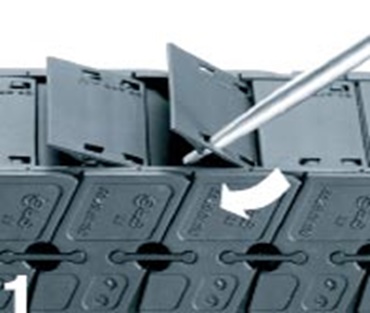

System E6 Assembly Lever with screwdriver...

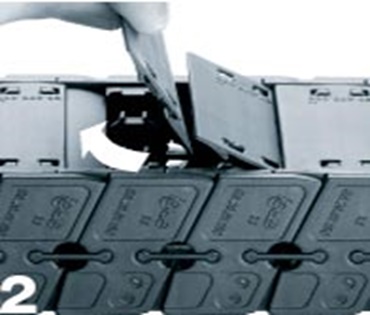

System E6 Assembly ...and remove lids by hand

System E6 - Installation - Video
