Assembly Instructions for System E2/000 and E2 Medium

Assembling

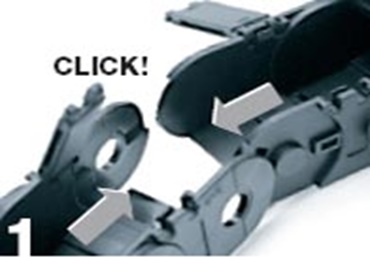

System E2/000 Assembly Push and click

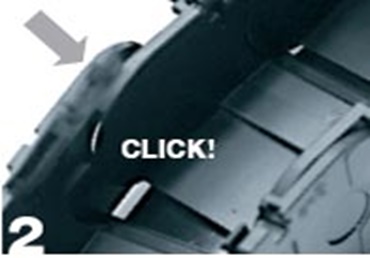

System E2/000 Assembly Snap in pin

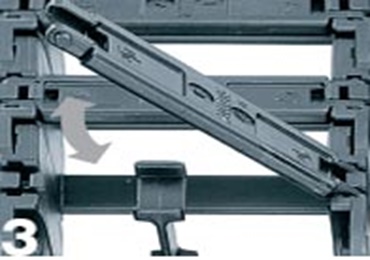

System E2/000 Assembly Swivel crossbars

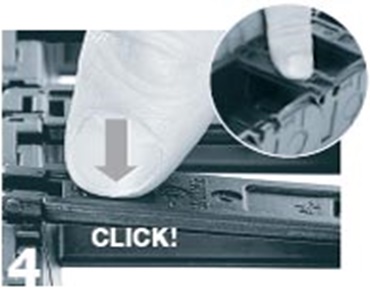

System E2/000 Assembly Push and snap

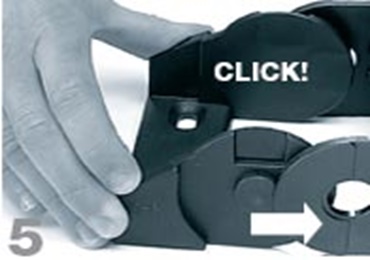

System E2/000 Assembly Snap mounting bracket into link

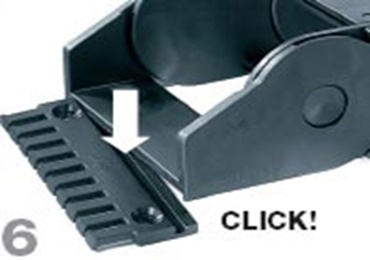

System E2/000 Assembly Snap tiewrap plate into bottom groove

Separation

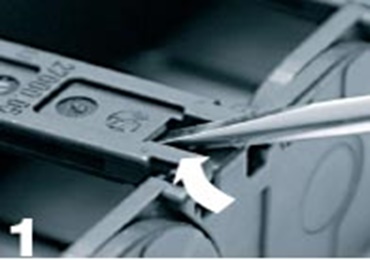

System E2/000 Assembly Lever crossbars
System E2/000 Assembly Swivel crossbars
System E2/000 Assembly Release side-link

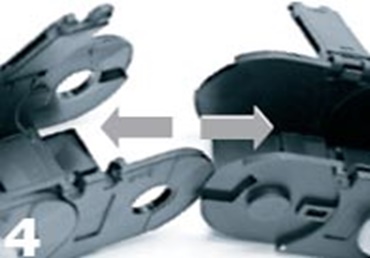

System E2/000 Assembly Twist and pull apart

Filling E-Tube

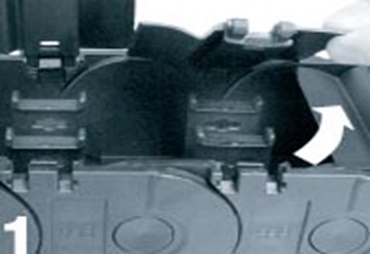

System E2/000 Assembly Open: swivel lids

System E2/000 Assembly Close: push and snap

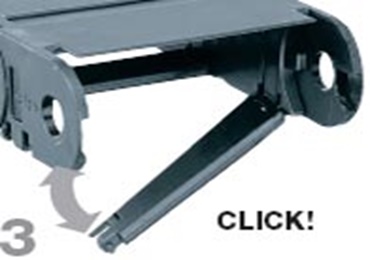

System E2/000 Assembly "Half" E-Tube: swivel crossbars
System E2/000 Assembly Remove lid: lever

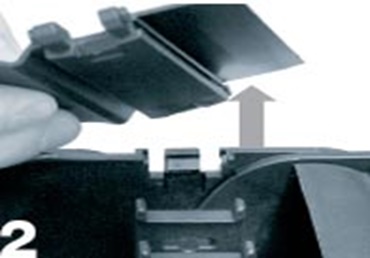

System E2/000 Assembly Remove lid

System E2/000 and E2 Medium: installation video
