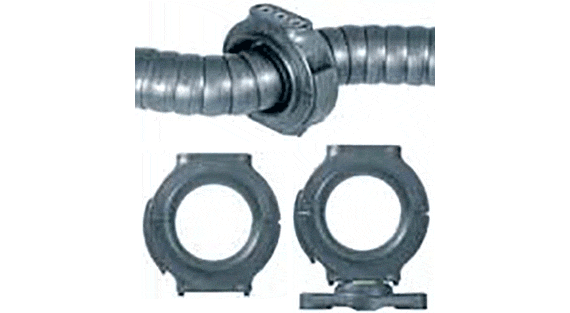

triflex® R glide through rings

You are now leaving igus.ca

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!

Width-	Part No.	Dimension A	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G
Index	Gliding feed-through	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]

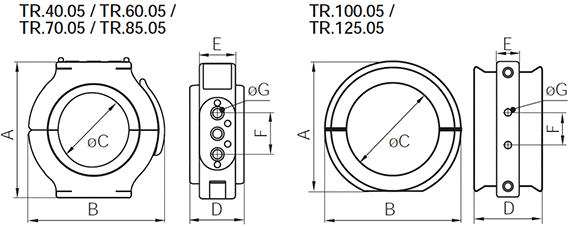

	Without swivel bearing
40	TR-40-05	85	84,5	46	32	21	27	6,5	Inquiry
60	TR-60-05	126	126	70	50	32	40	9	Inquiry
70	TR-70-05	153	155	86	70	35	40	9	Inquiry
85	TR-85-05	153	155	100	84	35	40	9	Inquiry
100	TR-100-05	162,5	169,5	115	85	28	40	8,5	Inquiry
125	TR-125-05	179	190	142	84	40	64	9	Inquiry

Width-	Part No.	Dim. A	Dim. B	Dim.C	Dim. D	Dim.E	Dim. F	Dim. G	Dim. H
Index	Gliding feed-through	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]

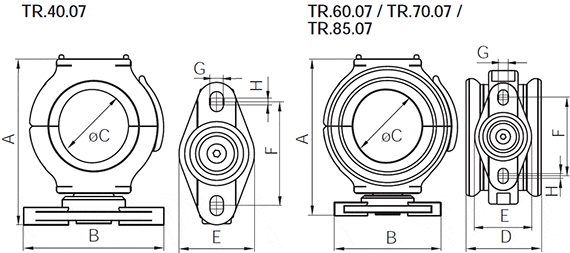

	With swivel bearing
40	TR-40-07	108	89	46	32	47	65	8,4	4,1	Inquiry
60	TR-60-07	156	118	70	50	65	87,5	10,5	5,5	Inquiry
70	TR-70-07	183	118	86	70	65	87,5	10,5	5,5	Inquiry
85	TR-85-07	183	118	100	84	65	87,5	10,5	5,5
