Plug-in connector sets

Original M8/M12 service packs from Binder directly from stock

In addition to brands such as Harting, TE Intercontec and Molex FCT, we now offer an extensive catalogue programme from Franz Binder GmbH.
This complements our selection in an important industrial area and rounds off our plug-in connector range in the direction of M8 and M12, in order to be able to offer our customers even more service.
With the order-picked service packs from stock, which contain all individual parts, you can quickly and easily carry out your work directly in your facility.

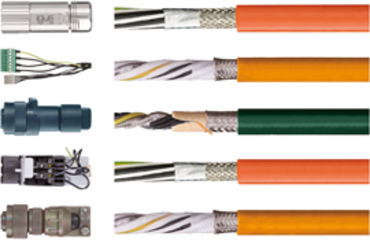

And igus is also happy to offer fully harnessed cables for moving applications according to customer requirements.

Typical application areas:
measurement and control technology, e.g. inductive sensor, light barrier, sensors and actuators with built-in connector

All details about Binder plug-in connectors at a glance

M8 - A-coded: non-shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 3400 100 03	MAT0174945	3pol	Socket	3.5-5.0mm	order
99 3379 100 03	MAT01712009	3pol	Pin	3.5mm	order
99 3376 100 04	MAT0174989	4pol	Socket	3.5mm	order
99 3383 100 04	MAT0173041	4pol	Pin	3.5mm	order

M8 - A-coded: shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 3360 100 03	MAT01747828	3pol	Socket	4.0mm	order
99 3361 100 03	MAT01715998	3pol	Pin	4.0mm	order
99 3362 100 04	MAT01743277	4pol	Socket	4.0mm	order
99 3363 100 04	MAT01717508	4pol	Pin	4.0mm	order
99 3360 300 03	MAT01733873	3pol	Socket	6.0mm	order
99 3361 300 03	MAT01733874	3pol	Pin	6.0mm	order
99 3362 300 03	MAT01731011	4pol	Socket	6.0mm	order
99 3363 300 03	MAT01730059	4pol	Pin	6.0mm	order

7/8" non-shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 2442 21 04	MAT01723423	3+PE	Socket	8.0mm	order
99 2443 21 04	MAT01732663	3+PE	Pin	8.0mm	order
99 2444 21 05	MAT01718734	4+PE	Socket	8.0mm	order
99 2445 21 05	MAT01722513	4+PE	Pin	8.0mm	order

M12 - A-coded: non-shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 0430 07 04	MAT01717316	3pol	Socket	4.0mm	order
99 0429 07 04	MAT0173490	3pol	Pin	4.0mm	order
99 0430 12 04	MAT01715145	4pol	Socket	6.0mm	order
99 0429 12 04	MAT01710555	4pol	Pin	6.0mm	order
99 0436 12 05	MAT0175659	5pol	Socket	6.0mm	order
99 0437 12 05	MAT01718305	5pol	Pin	6.0mm	order
99 0486 12 08	MAT0178575	8pol	Socket	6.0mm	order
99 0487 12 08	MAT01710219	8pol	Pin	6.0mm	order

M12 - A-coded: shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 1430 812 04	MAT0171842	4pol	Socket	4.0mm	order
99 1429 812 04	MAT0171841	4pol	Pin	4.0mm	order
99 1436 812 05	MAT0173023	5pol	Socket	6.0mm	order
99 1437 812 05	MAT0170880	5pol	Pin	6.0mm	order
99 1436 914 05	MAT01749490	5pol	Socket	8.0mm	order
99 1437 914 05	MAT01749489	5pol	Pin	8.0mm	order
99 1486 812 08	MAT0176266	8pol	Socket	6.0mm	order
99 1487 812 08	MAT0176267	8pol	Pin	6.0mm	order
99 1486 914 08	MAT01724437	8pol	Socket	8.0mm	order
99 1487 914 08	MAT01729497	8pol	Pin	8.0mm	order

M12 - A-coded angle sockets: shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 1430 822 04	MAT0172523	4pol	Socket	6.0mm	order
99 1429 822 04	MAT01725700	4pol	Pin	6.0mm	order
99 1436 822 05	MAT01717529	5pol	Socket	6.0mm	order
99 1437 822 05	MAT01727838	5pol	Pin	6.0mm	order

M12 - D-coded: shieldable, screw connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 3728 810 04	MAT01749274	4pol	Socket	5.0mm	order
99 3727 810 04	MAT01738281	4pol	Pin	5.0mm	order

M12 - X-coded: shieldable, insulation displacement connection



Manufacturer part no.	igus® Part No.	Number of poles	Contact type	Clamping range
99 3788 810 08	MAT01746538	8pol	Socket	5.0mm	order
99 3787 810 08	MAT01742976	8pol	Pin	5.0mm	order
