Sewage treatment plants with intelligent monitoring

Intelligent sensors in sewage treatment plant pipelines prevent failures before they occur

Increasing process reliability, minimising maintenance effort, transmitting data in a sustainable manner - these are the requirements for the energy supply of sewage treatment plants and systems. And the whole thing is required 24/7, 365 days a year. This requires not only extremely tough and durable systems and components. But also smart technology.

Specification

What was needed: basic flizz energy chain system, condition monitoring EC.P
Requirements: tough and durable energy chain, avoidance of total failures due to unnoticed malfunctions
Industry: wastewater and sewage treatment plants
Success for the customer: advantages of the basic flizz energy chain are its modular design and protection against wind and weather. Due to the 24/7 condition monitoring of the chain, the system shuts down in case of malfunctions to avoid a total failure. It saves the operator considerable costs and time.

Request EC.P here

Problem

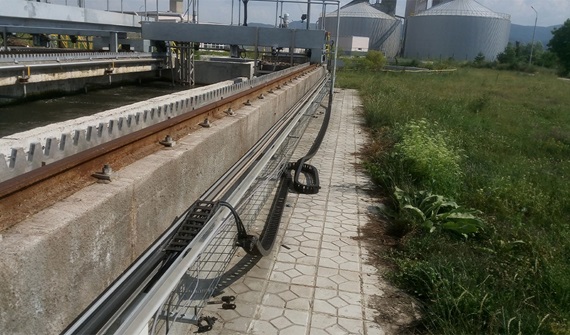

In sewage treatment plants, energy chains for cable guidance operate around the clock, 365 days a year. Despite this continuous load, downtime of the cable systems is to be avoided at all times, which requires particularly tough as well as durable systems and components. But the chain guide alone is often not enough here. This is because most sewage treatment plants run much of the time without any human presence. Therefore, disturbances as well as possible malfunctions sometimes remain undetected for hours. Although the chains move at a very slow speed, a malfunction usually leads to a complete total loss. This total breakdown of the energy supply system leads to significantly higher costs than a standstill over several hours, where the system can be put back into operation after a short maintenance period. Without human supervision, the corrective element is missing here.

Solution

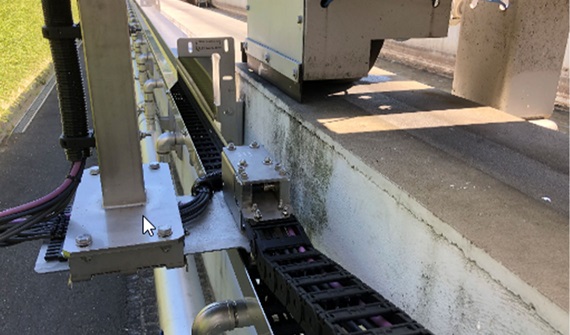

For most rectangular clarifiers, the use of a basic flizz energy chain system is very suitable. The advantage of the e-chain is its modular design and protection from wind and weather. The basic flizz system can be installed either directly on the basin wall or on the floor along the basin.

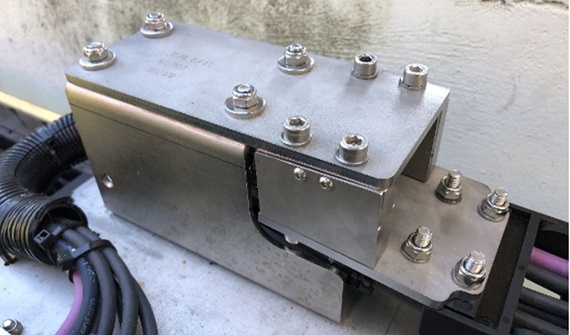

In applications where constant control of the system is required, the energy chain system is combined with condition monitoring in the form of an EC.P sensor (EC = e-chain P = pull force) . This sensor, which is installed on the floating moving end of the e-chain, continuously measures the force that the installation requires to move the energy supply system. If it changes due to external influences such as ice, an animal or a tool dropped during maintenance, the sensor detects this change and switches off the system - completely without human intervention.
This prevents expensive consequential damage to the energy supply system.

Application examples with smart plastics

smart examples with e-chain®, chainflex® cables and bearings

Industry: Automotive

Intelligent Breakage Monitoring in 22 Ton Driving Simulator

Which smart plastics technology is used?
P4.1 roller chain, i.Sense EC.B, chainflex cables

Why is it used?
Increase in plant safety and availability; complete project implementation from a single source; smart early warning system.

Learn more about this solution

Industry: Crane

Longest travel with smart roller chain system

Which smart plastics technology is used?
i.Sense EC.P for permanent monitoring of the system

Why is it used?
The system includes intelligent sensors for monitoring the pull/push forces, which can be used for an emergency shutdown in the event of increased forces.

Industry: Crane

Smart shipyard cranes in successful use for years

Which smart plastics technology is used?
Roller energy chains with the iSense EC.P pull/push force detectio.

Why is it used?
To avoid system damage and failures through preventive maintenance or remote intervention.

Learn more about this solution

Industry: Crane

Complete smart plastics package on RMG crane

Which smart plastics technology is used?
EC.P for push/pull forces, EC.B for chain breaks, CF.P for measuring tensile force on cables, EC.M for movement data and EC.W for measuring abrasion and a predictive maintenance system.

Why is it used?
The customer now has full control, overview and safety.

Learn more about this solution

Industry: Automotive

Austrian automotive parts supplier uses smart plastics

Which smart plastics technology is used?
EC.B sensor for breakage monitoring + EC.W for measurement of the abrasion along the e-chain®.

Why is it used?
For the customer, it is important that subsequent damage to the equipment be prevented in the event of chain breakage.

Learn more about this solution

Industry: Transport

Predictive maintenance in train washing station

Which smart plastics technology is used?
EC.M motion sensor, EC.W abrasion sensor, EC.B breakage sensor, i.Cee:plus to evaluate data, i.Cee:net to transfer to dashboard.

Why is it used?
The built-in components ensure that, if damage occurs, the machine is shut down to provide an optimum maintenance plan.

Learn more about this solution

Industry: Packaging

"igus® CF.Q condition monitoring can prevent failure of machines with high output"

Which smart plastics technology is used?
E4.1L e-chains® and chainflex® cables pre-assembled as a readychain, CF.Q isense sensors, Module Connect connector.

Why is it used?
The isense sensors with CF.Q module detect core ruptures before they occur and save the user high downtime costs.

Learn more about this solution

Industry: Robotics

Predictive maintenance planning for linear robot

Which smart plastics technology is used?
EC.M sensor for motion data and EC.W sensor for the measurement of abrasion along the energy chain

Why is it used?
The two sensors transfer the measured values via the i.com module (now i.Cee module) directly to Güdel's condition monitoring system, which evaluates the data and makes maintenance predictable.

Learn more about this solution

Industry: Mining

Smart plastics in aluminum oxide production

Which smart plastics technology is used?
EC. P System as a cleaning or maintenance reminder.

Why is it used?
The heavy dust arising during the movement of bauxite is an enormous stress, especially for moving machine components.

Learn more about this solution

Industry: Wastewater and sewage treatment plants

Smart sensors in sewage treatment plant pipelines prevent failures before they occur.

Which smart plastics technology is used?
EC. P pull force monitoring system for the energy chain

Why is it used?
The EC. P module is used to shut down the plant in an emergency so that the damage can be rectified or total damage is avoided.

Learn more about this solution

Industry: Agriculture

Smart bearings in agricultural machinery

Which smart plastics technology is used?
i.Sense bushing

Why is it used?
The smart bearings reports the current condition of components and how worn they are.
