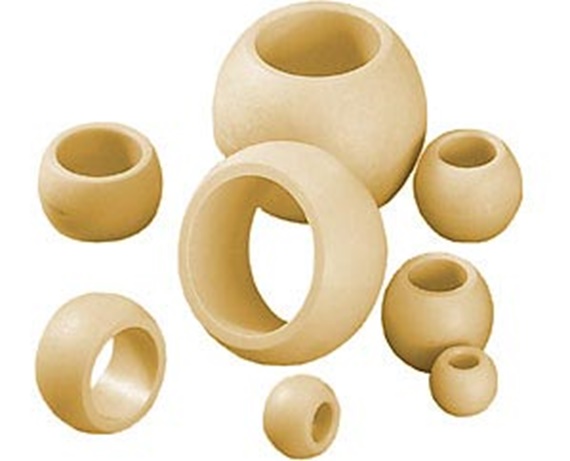

igubal® spherical balls WKI, WEI (inch), WKM, WEM (mm)

Standard - iglide® L280; extreme wear resistance

Spherical balls WKI

d1 [inch]:

Dimensions [inch]
igubal® spherical balls WKI

Order no.	d1 E10	dn	dk	B
WKI-03	0.1900	0.307	0.444	0.312	1.66 USD
WKI-04	0.2500	0.354	0.516	0.375	1.84 USD
WKI-05	0.3125	0.447	0.625	0.437	2.20 USD
WKI-06	0.3750	0.504	0.718	0.5	2.51 USD
WKI-07	0.4375	0.601	0.828	0.562	3.03 USD
WKI-08	0.5000	0.7	0.938	0.625	4.00 USD
WKI-10	0.6250	0.838	1.125	0.75	4.69 USD
WKI-12	0.7500	0.978	1.312	0.875	7.62 USD
WKI-16	1.0000	1.269	1.75	1.375	17.12 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Spherical balls WEI

d1 [inch]:

Dimensions [inch]
igubal® spherical balls WEI

Order no.	d1 H10	dn	dk	B
WEI-03	0.1900	0.354	0.402	0.19	1.08 USD
WEI-04	0.2500	0.314	0.402	0.25	1.08 USD
WEI-05	0.3125	0.415	0.52	0.3125	1.27 USD
WEI-06	0.3750	0.506	0.63	0.375	1.46 USD
WEI-07	0.4375	0.581	0.709	0.4063	1.57 USD
WEI-08	0.5000	0.581	0.709	0.4063	1.93 USD
WEI-10	0.6250	0.802	0.945	0.5	2.81 USD
WEI-12	0.7500	0.75	1.138	0.625	3.19 USD
WEI-16	1.0000	1.18	1.398	0.75	4.35 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Spherical balls WKM

d1 [mm]:

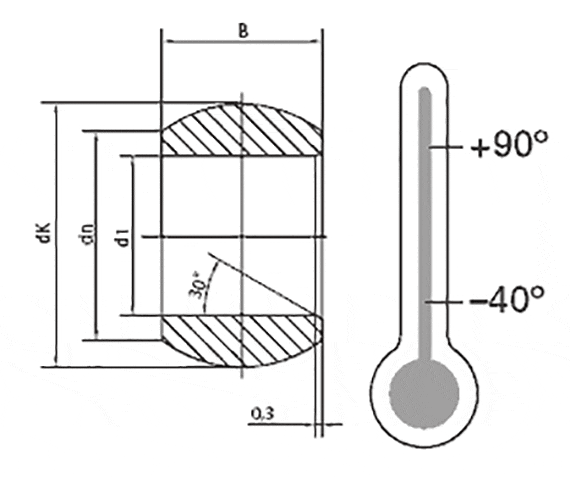

Dimensions [mm]
igubal® spherical balls WKM

Order no.	d1 E10	dn	dK	B
WKM-02-04	2	3.9	5.1	4	1.12 USD
WKM-03-06	3	5.1	8.1	6	1.22 USD
WKM-05-08	5	7.7	11.3	8	1.50 USD
WKM-06-09	6	8.9	12.8	9	1.81 USD
WKM-08-12	8	10.3	16	12	2.24 USD
WKM-10-14	10	12.9	19	14	2.73 USD
WKM-12-16	12	15.4	22.1	16	3.70 USD
WKM-14-19	14	16.8	25.4	19	5.07 USD
WKM-16-21	16	19.3	28.4	21	5.74 USD
WKM-18-23	18	21.8	31.5	23	5.81 USD
WKM-20-25	20	24.3	35.1	25	8.77 USD
WKM-22-28	22	25.8	38.3	28	9.35 USD
WKM-25-31	25	29.5	42.9	31	11.93 USD
WKM-30-37	30	34.8	51.2	37	17.66 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Spherical balls WEM

d1 [mm]:

Dimensions [mm]
igubal® spherical balls WEM

Order no.	d1 E10	dn	dK	B
WEM-04-05	4	6.25	8.3	5	1.15 USD
WEM-05-06	5	8	10.3	6	1.15 USD
WEM-06-06	6	8	10.3	6	1.27 USD
WEM-08-08	8	10	13.3	8	1.39 USD
WEM-10-09	10	13	16.1	9	1.57 USD
WEM-12-10	12	15	18.1	10	1.70 USD
WEM-15-12	15	18	22	12	2.31 USD
WEM-16-13	16	19.5	24.1	13	2.81 USD
WEM-17-14	17	20	25.1	14	3.57 USD
WEM-20-16	20	24	29.1	16	4.42 USD
WEM-25-20	25	29	35.6	20	5.88 USD
WEM-30-22	30	34	40.9	22	7.51 USD
