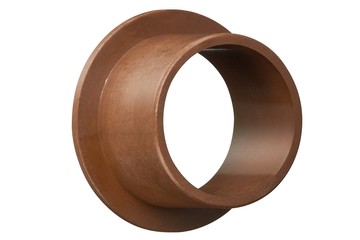

iglide® H2 | Low-cost, for high temperatures


• Can be used underwater
• Cost-effective
• Resistant to chemicals
• For high temperatures
• Lubrication and maintenance-free

In applications with the iglide® H2 bearings, economical aspects are in focus. It is the first time that it is possible to offer such a high-performance bearing for large volume applications with these technical advantages at such a low price: temperatures up to +392 °F, permitted surface pressure up to 110 N/mm2, and excellent chemical resistance. iglide® H2 bearings are self-lubricating and suitable for all movements.

Typical application areas

Automotive onboard and manufacturing

You will find plenty of additional application areas at our Industry solutions



When to use it? For underwater use When a cost-effective bearing for high temperatures is required For applications with fuels, oils, etc. Resistant to chemicals

When not to use? When the highest wear resistance is required When vibration dampening is necessary When neither increased temperatures nor media contact occur   Use our filter options to find the most suitable product

Tolerances and measurement system
The installation dimensions and tolerances of the iglide® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are imperative. Plain bearings with low moisture absorption can be designed with a minimal amount of tolerance. For wall thickness, the rule is: The thicker the bearings are, the larger the tolerances must be.
Testing methods

Assembly
iglide® bearings are press-fit bearings. The inner diameter adjusts only after press-fit in the proper housing bore with a recommended tolerance. The before press-fit oversized dimension can be up to 2% of the inner diameter. In this manner, the secure press-fitting of the bearing is achieved. Axial or radial shifts in the housing are also prevented.
iglide® - assembling, gluing, machining
