e-chain® cable carriers for high loads

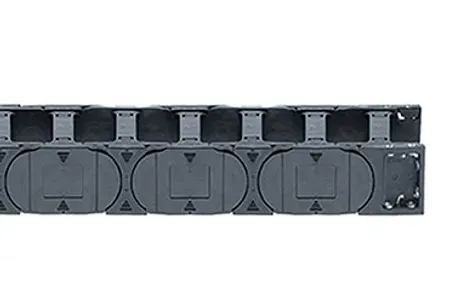

A series for virtually every application

• Inner height: 30 to 800mm
• Crossbars removable along the inner and outer radius
• For especially demanding applications
• Undercut design for the best possible lateral stability
• Double stop-dog system and large pin/bore connection for high level of force absorption

• High push force on long travels and for large unsupported lengths
• Noise-reducing "brakes" and optional noise dampers
• Integrated "brake" for low-noise running

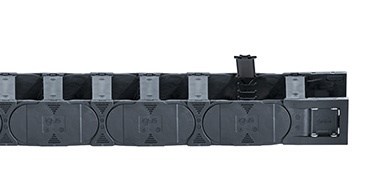

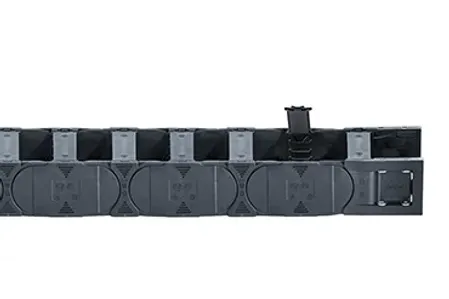

Reduce cost, time and weight

• Inner height: 40 to 300mm
• Crossbar openable from both sides along inner and outer radius
• Integrated "brake" for low-noise running
• Undercut design for the best possible lateral stability
• Can be closely adapted to the application

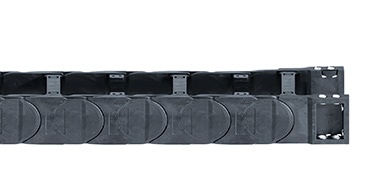

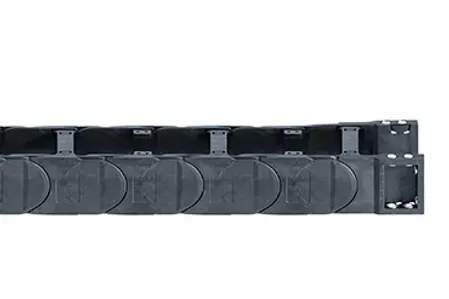

Large inner heights combined with low own weight

• Inner height: 50 to 600mm
• Crossbars removable along the inner and outer radius
• Reduced thickness of the side sections and thinner crossbars

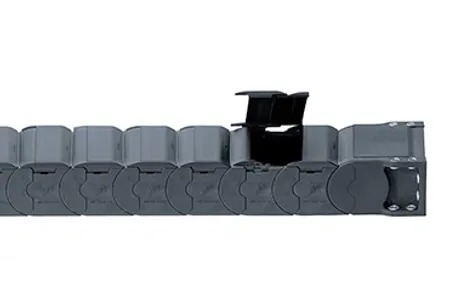

Chip-repellent chains
